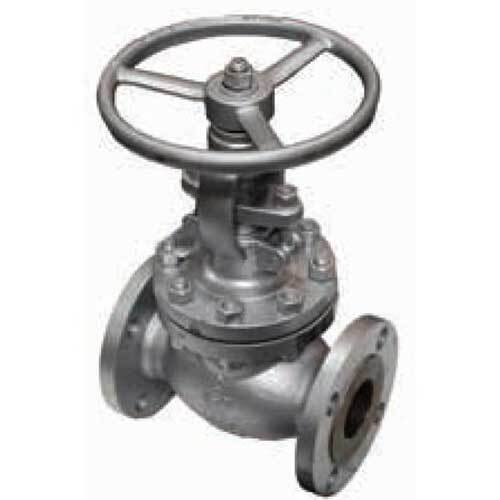

AAP 150mm, 6" Cast Steel Flanged Globe Valve ANSI 150 VGL15096

Description

AAP Cast Steel Flanged Globe Valve ANSI 150

Applications:

Steam service, Oil and Petrochemical industry

Specification:

Design and Manufacture - ANSI B16.34
Flange Dimensions - ANSI B16.5
Face to Face Dimensions - ANSI B16.10
Max Working Temperature - 300°C
Cold Working Pressure - 1960kPa

Material List

Body - ASTM A216 WCB
Seat Ring - ASTM A105+ERCoCR-A
Bonnet Gasket - 13Cr+Graphite
Packing - Graphite
Pin - Carbon Steel
Stem Nut - A1 - Bronze
Screw - Carbon Steel
Handwheel - ASTM A356

About Globe Valves:

A globe valve is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle.
This has an opening that forms a seat onto which a movable plug can be screwed in to close the valve.
The plug is also called a disc or disk.
In globe valves, the plug is connected to a stem which is operated by screw action in manual valves.
Globe valves are typically used for applications requiring throttling and frequent operation.

Specifications

AIMS SKU A0081107

Brand AAP

Model Number VGL15096

Pipe Size (inch) 6

Pipe Size (mm) 150

Approx. Kg/pc 110

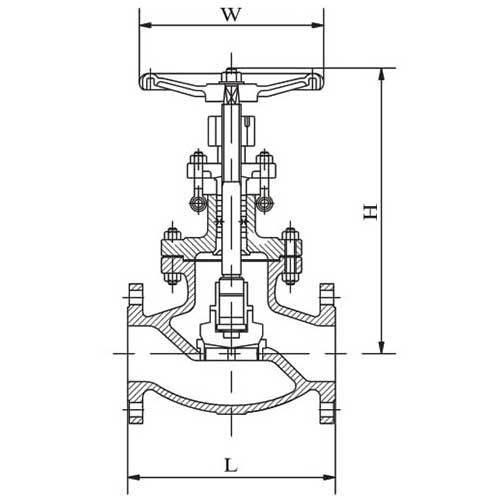

Valve Length (l) 406.4

Height of handle from Valve (H) 512

Valve Handle Length (W) 350

Number of holes 8

Hole Diameter 22
