Description

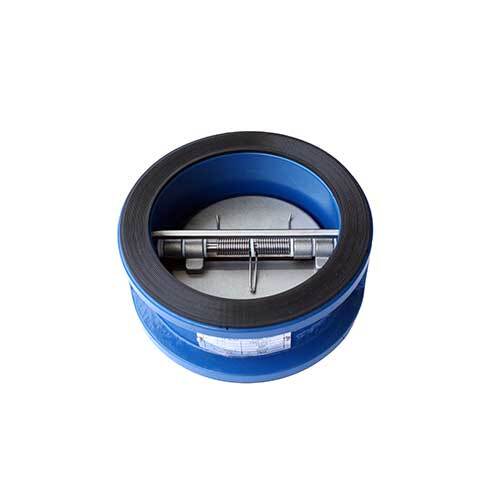

AAP Wafer Check Valve Dual Disc - Viton Seat

Application:

  • Water, Air, Gas, High-Pressure Liquid

Specifications:

  • Flange - ANSI B16.5
  • Cold Working Pressure - 1965kPa
  • Max Working Temperature - 150°C

Material Lists:

  • Body - WCB
  • Seat - Viton
  • Disc - 304 Stainless Steel

Specifications

  • AIMS SKU A0081262
  • Brand AAP
  • Model Number VWCCS15094
  • Pipe Size (inch) 4
  • Pipe Size (mm) 100

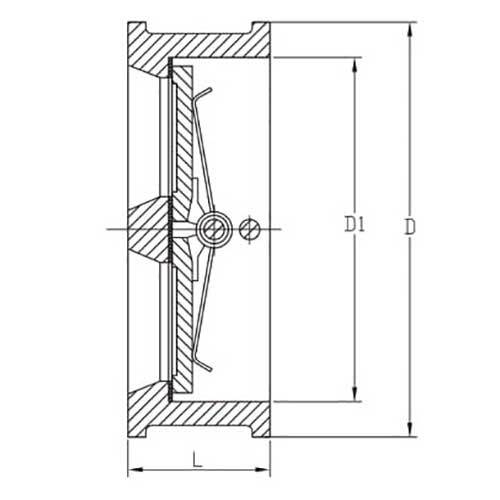

  • Valve Length (l) 64
  • Valve Diameter (D) 164
  • Approx Kg/pc 4.8
  • Valve Inner Diameter (d1) 118
  • Type Wafer Check Valve
SKU: A0081262

AAP 100mm, 4" Wafer Check Valve Dual Disc & Viton Seat ANSI 150 VWCCS15094

AAP Wafer Check Valve

$482.85
RRP $901.32
SAVE $418.47 (46%)
