Description

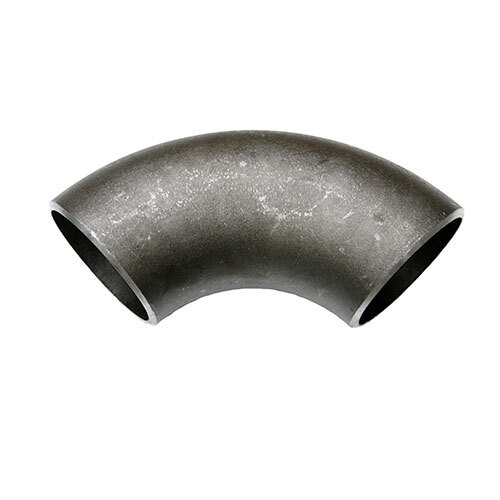

AAP 90° Short Radius Elbow Buttweld Std

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078254
  • Brand AAP
  • Model Number WEX25
  • Pipe Size (inch) 10

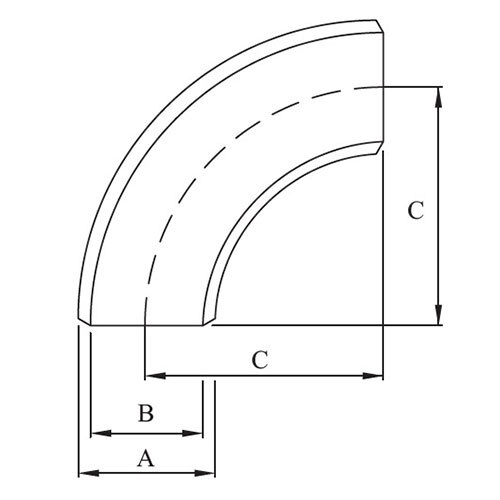

  • Outer Diameter (A) mm 273.1
  • Inner Diameter (B) mm 254.5
  • Center To End (C) mm 381
  • Wall Thickness 9.3
  • Approx. Weight kg/pc 36
  • Type Short Radius Elbow
  • Pipe Fitting Connection Buttweld
  • Specific Fitting Shape 90deg
SKU: A0078254

AAP 10" Long Radius 90° Elbow Buttweld STD ASTM A234 WEX25

AAP - 90° Elbow - Buttweld

$346.40
RRP $666.15
SAVE $319.75 (48%)
