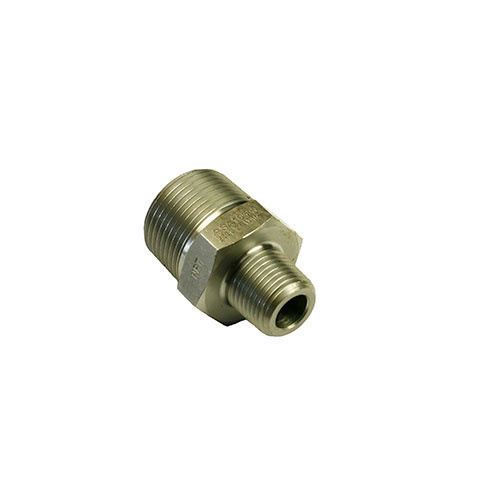

AAP 1" x 3/4" High Pressure Reducing Hexagon Nipple BSPT Black PN2520B

Description

AAP Reducing Hexagon Nipple BSPT Available in Black

(High-Pressure Fittings)

Rating: Threaded End – 3000lbs

Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded

Threads: AS1722.1/ ISO 7 - British Standard Taper Threads (BSPT)

Marking:
- Carbon and Alloy Steel – Market by Stamping
- 3/8" and under: Brand only
- 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

finishing: Available in Black, Hot-Dipped, Stainless Steel

Specifications

AIMS SKU A0079542

Brand AAP

Model Number PN2520B

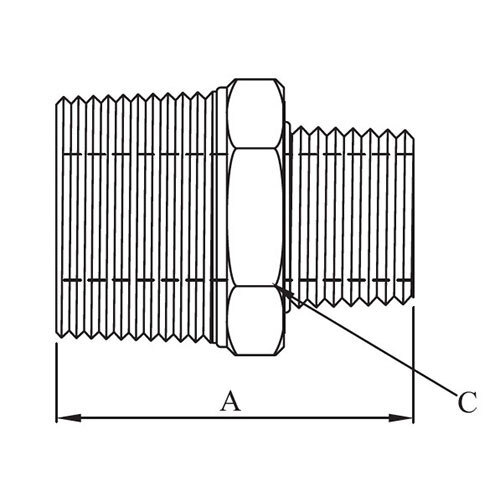

Length (A) 56

Pipe Size (inch) 1 x 3/4

Pipe Size (mm) 25 x 20

Approx. Kg/pc 0.2

C 35

Type Reducing Hex Nipple
Fitting Thread Form BSPT
Pipe Fitting Material Finish Black

Calculate Shipping

Resources

AAP S6 High Pressure Fittings Catalogue
