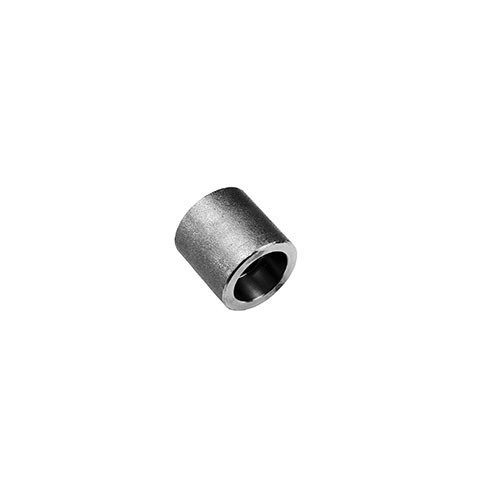

AAP 1", 25mm High Pressure Coupling Socket Weld PSTCP25S

Description

AAP Coupilng Socket Weld - Stainless 316

(High-Pressure Fittings)

Rating: Socketweld End – 3000lbs

Standards:
- ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
- ASTM A182/A182M-12a - Standard specification for Forged or Rolled Alloy and Stainless Steel Forged Fittings

Marking:
- Carbon and Alloy Steel – Market by Stamping
- 3/8" and under: Brand only
- 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

AIMS SKU A0079885

Brand AAP

Model Number PSTCP25S

B 33.9

Length (A) 37.5

Pipe Size (inch) 1

Pipe Size (mm) 25

Approx. Kg/pc 0.29

C 25.9

Socket Bore Diameter (B) 34.3

Bore Diameter Of Fittings ( C ) 27.4

Type Socket Weld Coupling
Pipe Fitting Connection Socket Weld
Pipe Fitting Material Finish 316 Stainless Steel
