Description

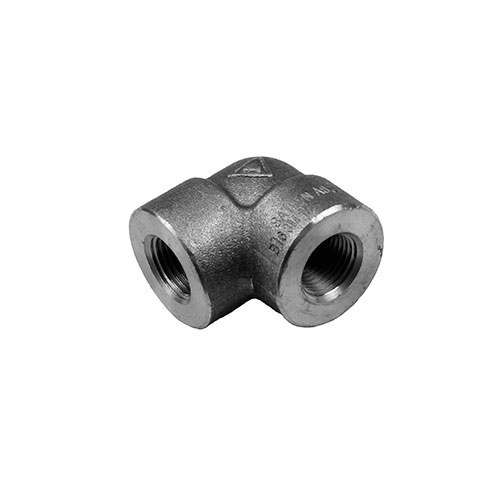

AAP 90deg Threaded Elbow - BSPT Stainless 316

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards:
    • ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
    • ASTM A182/A182M-12a - Standard specification for Forged or Rolled Alloy and Stainless Steel Forged Fittings
  • Threads: AS1722.1/ ISO 7 - British Standard Taper Threads (BSPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079899
  • Brand AAP
  • Model Number PSTE25B
  • B 56
  • Pipe Size (inch) 1
  • Pipe Size (mm) 25
  • Approx. Kg/pc 1.14
  • Center To End (A) 44
  • Type Threaded Elbow
  • Specific Fitting Shape 90°
  • Fitting Thread Form BSPT
  • Pipe Fitting Material Finish 316 Stainless Steel
SKU: A0079899

AAP 1", 25mm 90° Elbow High Pressure Threaded BSPT Stainless 316 PSTE25B

AAP - Threaded - 90° Elbow

$106.96
RRP $199.66
SAVE $92.70 (46%)
