AAP 1-1/4" Short Radius 90° Elbow Buttweld STD ASTM A234 WE32SR

Description

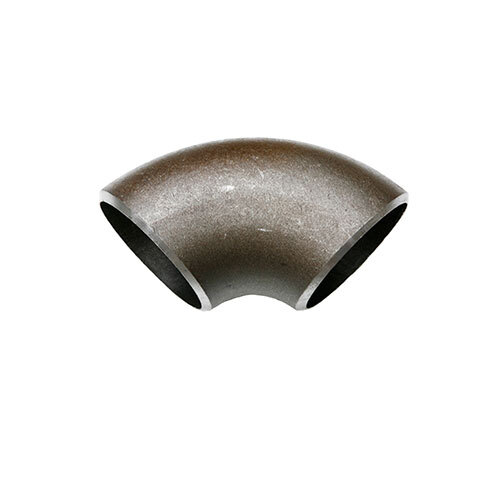

AAP 90° Short Radius Elbow Buttweld Std

Specification

AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.

The advantages of Buttweld include:

Welding a fitting to the pipe means that is permanently leak
The continuous metal structure formed between pipe and fitting adds strength to the system.
The smoother inner surface and gradual direction flanges reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion.
A welded system utilizes a minimum of space.

Specifications

AIMS SKU A0078262

Brand AAP

Model Number WE32SR

Pipe Size (inch) 1-1/4

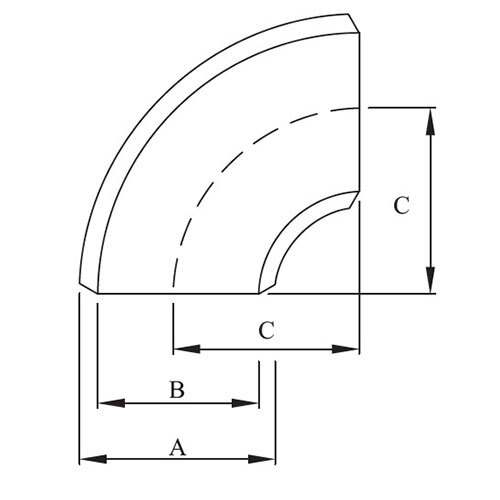

Outer Diameter (A) mm 42.2

Inner Diameter (B) mm 35

Center To End (C) mm 31.8

Wall Thickness 3.6

Approx. Weight kg/pc 0.17

Type Short Radius Elbow
Pipe Fitting Connection Buttweld
Specific Fitting Shape 90deg
