Description

AAP 90deg Elbow Socket Weld - Stainless 316

(High-Pressure Fittings)

  • Rating: Socketweld End – 3000lbs
  • Standards:
    • ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
    • ASTM A182/A182M-12a - Standard specification for Forged or Rolled Alloy and Stainless Steel Forged Fittings
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079907
  • Brand AAP
  • Model Number PSTE40S
  • B 48.8
  • Pipe Size (inch) 1-1/2
  • Pipe Size (mm) 40
  • Approx. Kg/pc 1.08

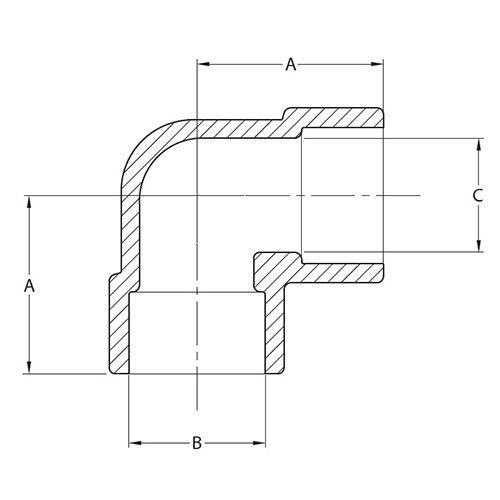

  • Center To End (A) 44.5
  • C 40.1
  • Socket Bore Diameter (B) 49.2
  • Bore Diameter Of Fittings ( C ) 41.6
  • Type Socket Weld Elbow
  • Pipe Fitting Connection Socket Weld
  • Pipe Fitting Material Finish 316 Stainless Steel
SKU: A0079907

AAP 1-1/2", 40mm 90° High Pressure Elbow Socket Weld PSTE40S

AAP - 90° Elbow

$146.45
RRP $273.38
SAVE $126.93 (46%)
