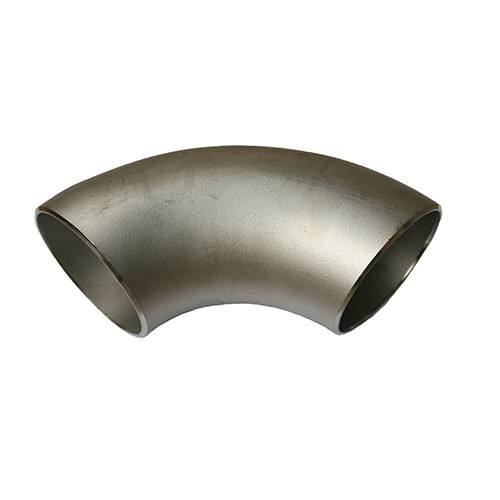

AAP 1-1/2", 40mm 90° Elbow L/R Buttweld 304/304L SS Sch 10 SWE1030440

Description

Stainless Steel Butt Weld

AAP supplies Stainless Steel butt-weld Fittings made from welded stainless steel pipe which is manufactured from 2B or HRAP stainless steel strip, which is formed to shape and longitudinally welded to complete the pipe.
Stainless Steel Butt Weld Fittings are made from the finest quality stainless steel designed to be dimensionally precise.
The advantages of these Fittings are their high tensile strength, robust nature, and rust-free properties.
Stainless steel butt-weld Fittings are most commonly used in refinery complexes, chemical production, and petrochemical engineering.
Material Specifications - ASTM A182 F316L - ASTM A182 F316.

Specifications

AIMS SKU A0080840

Brand AAP

Model Number SWE1030440

Pipe Size (inch) 1-1/2

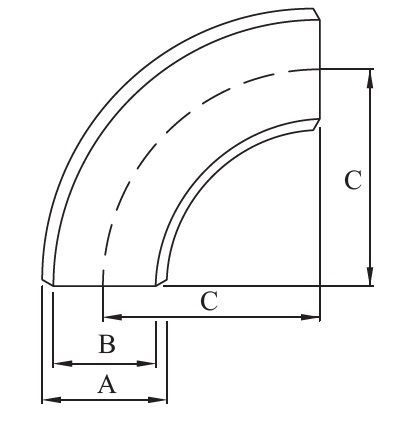

Outer Diameter (A) mm 48.3

Inner Diameter (B) mm 42.8

Pipe Size (mm) 40

Approx. Kg/pc 0.3

Thickness 2.77

Center To End ( C ) 57

Type Elbow
Pipe Fitting Connection Buttweld
Specific Fitting Shape 90deg
Fitting Schedule/class Schedule 10
Fitting Material 304 Stainless Steel

Calculate Shipping

Resources

AAP S8 SS Buttweld Fittings & Flanges Catalogue
