8018 Chain Coupling Straight Bore Complete with Cover - Finer Power Transmissions

Description

***Catalogue Dimensions are Reference Only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

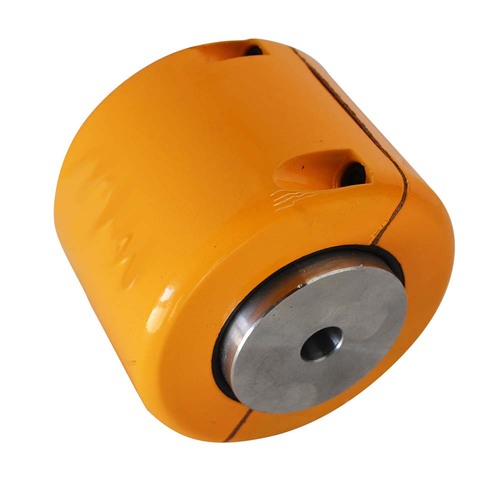

Chain Coupling Straight Bore Complete with Cover

About Chain Coupling

The Finer Chain Coupling consists of two sprockets joined together by a standard duplex roller chain.
This highly compact structure provides high flexibility between shafts, power transmission capabilities, and is durable and robust.
Chain Couplings allow for easy maintenance, it is a simple easy on/easy off process.
For increased safety Chain Coupling covers should be used.
The cover not only improves the safety of the workplace but also increases the Chain Couplings' overall durability.

Specifications

AIMS SKU A0159738

Weight (kg) 13.2

C (mm) 115

A (mm) 169

E (mm) 15.2

b (mm) 141.2

D (mm) 63

Chain Coupling Number C8018

Min. Bore 32

Max. Bore 80

Max. RPM without Cover 500

Max. RPM with Cover 2000

Type Chain Coupling
