Description

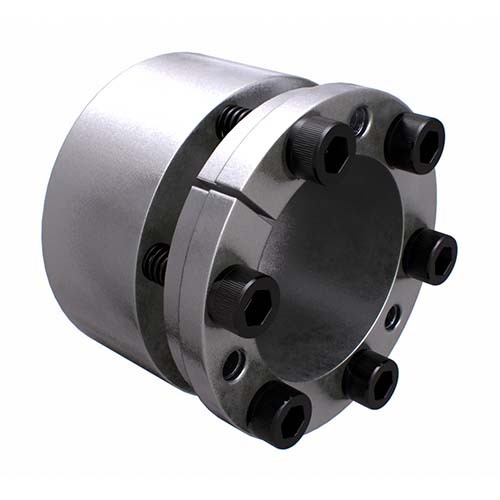

Locking Assembly - Self-Centering Unit Type 4

Locking Assemblies provide reliable, high strength keyless connections by converting locking screw clamp loads into radial contact pressures applied simultaneously to both the shaft and the bore of the mounted component.

The resulting zero-backlash mechanical interference fit will accommodate a high torque, thrust, bending, and/or radial loads.

Locking Assemblies provide reliable, high strength keyless connections for shaft-driven devices.

When the Locking Units bolts are tightened plates engage with both the shaft and the inside circumference of the driven component.

Specifications

AIMS SKU A0124568

Brand Reach

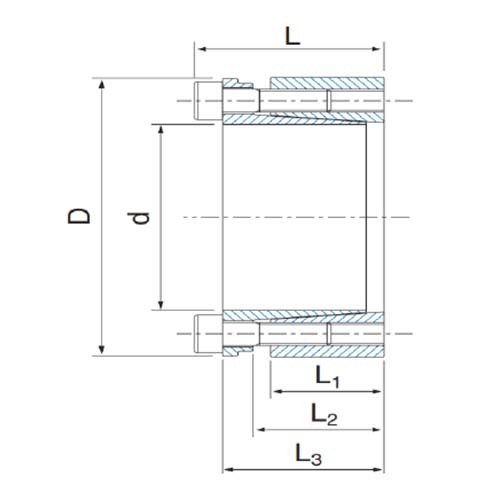

Dimensions (D) mm 120

Dimensions (L1) mm 46

Dimensions (L2) mm 62

Dimensions (L) mm 72

Dimensions (D1) mm 40

Transmissible Torque Kn 8155

Transmissible Axial Force Nm 189

Shaft Surface Pressure N/mm2 174

Hub Surface Pressure N/mm2 116

Screws Tightening Torque Nm 83

Clamping Screws No. 8

Clamping Screws Size M10x35

Dimensions L3 (mm) 62

Dimensions (d) 80
