Specifications
- AIMS SKU A0059698
- Hub Diameter (mm) 45
- Bore Diameter (mm) 8
- Belt Width (mm) 9
- Number of Teeth 60
- Pitch (mm) 5
- Outer Diameter (mm) 94.35
- Pitch Circle Diameter (mm) 95.49
- Pulley Width (mm) 14.5
- Bore Length (mm) 25.5
- Type Pilot Bore Timing Pulley
- Material Aluminium
- Section 5M
- Pitch (mm) 5
- Series HTD
SKU: A0059698

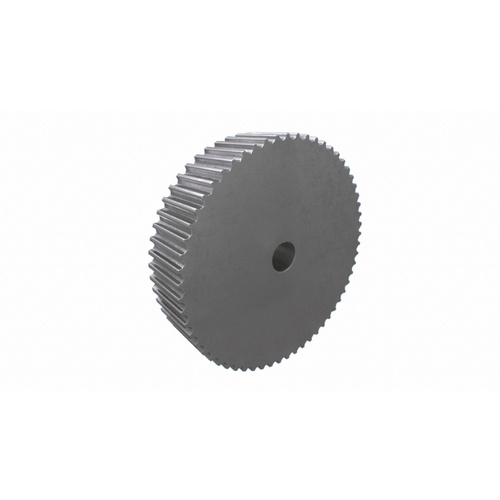

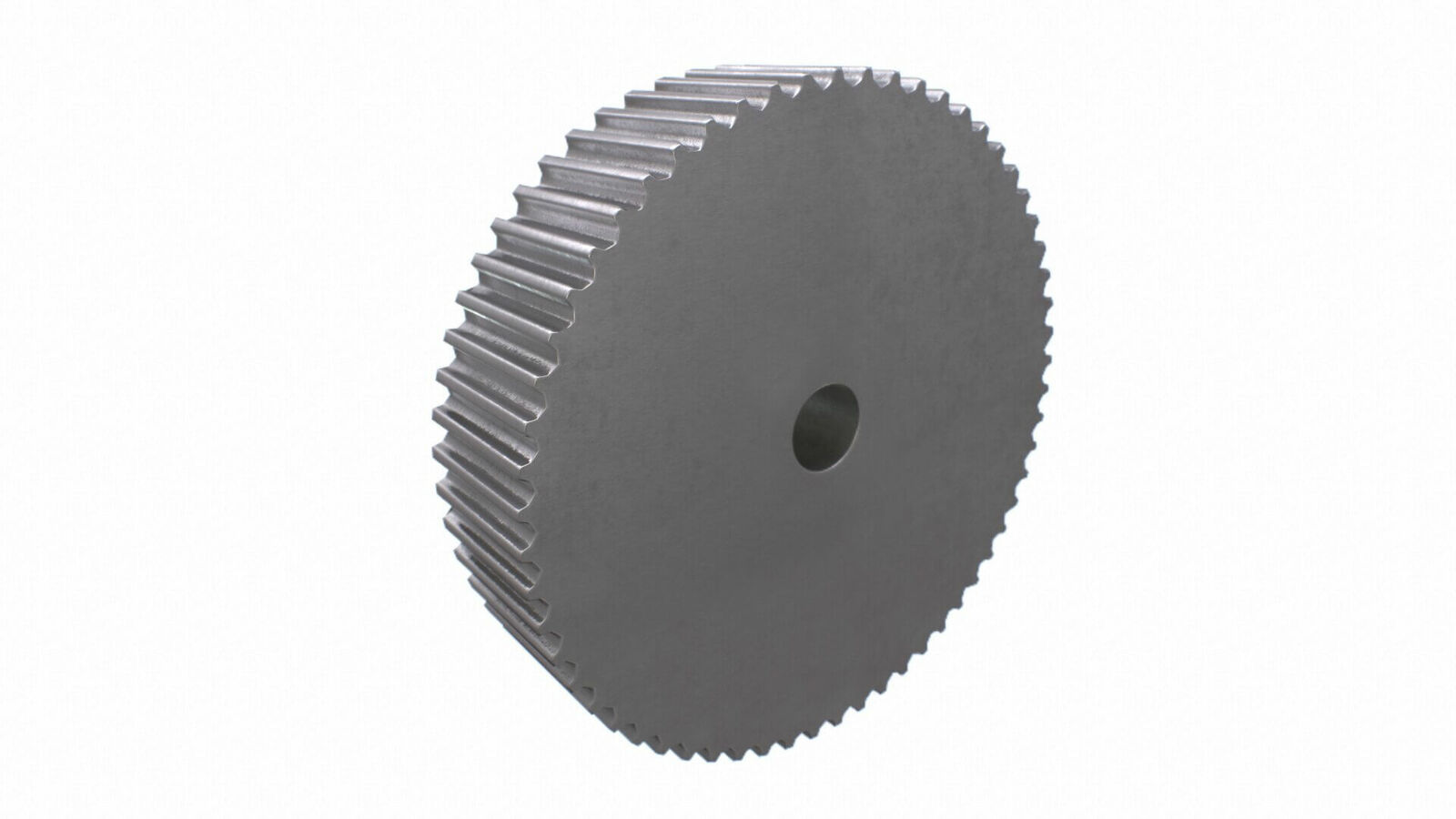

60 Teeth, 9mm Belt Width 5M HTD Timing Pulley Pilot Bore 60-5M-9PB - Al
Pilot Bore HTD Timing Belt Pulley
$183.84
