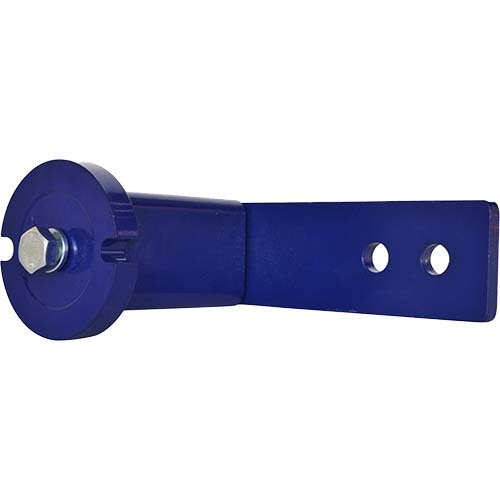

Tensioner Arm For Chain and Belt Tensioner

  • Idler sprockets tensioner arms work to ensure Chain Belt drives run under consistent and uniform tension, negating Chain Belt stretch.

All About The Elastomeric Tensioner's Benefits

  • A one nut mounting system, which allows for 360° rotation.

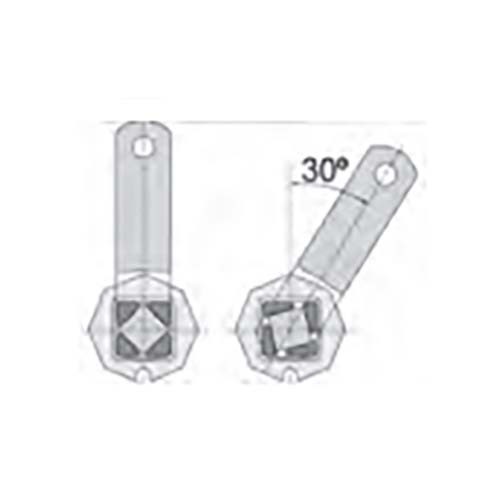

  • Can be pre-tensioned by up to 30°, this means that as the chain or belt stretches, the tensioner automatically takes up the slack as the elastomeric elements automatically adjust the tension of the drive.
  • Chain and Belt life is increased by as much as 30%.
  • Elastomeric parts absorb vibrations and shock loading.
  • Maintenance Free - no metal on metal parts, lubrication-free.
  • Impervious to dust and dirt, temperature -40° to +80°.
  • Two holes are provided on the arm, allowing two different levels of force to be generated: "normal" and "hard".
  • The "hard" setting deploys approximately 25% more force.

Specifications

  • AIMS SKU A0150879
  • Outer Diameter 50
  • Overall Length (mm) 60
  • Angle of Pretension (psi required) Hard 30° 37.8
  • Angle of Pretension (psi required) Normal 30° 30.4
  • Angle of Pretension (psi required) Hard 20° 18.2
  • Angle of Pretension (psi required) Normal 20° 14.6
  • Angle of Pretension (psi required) Hard 10° 7
  • Angle of Pretension (psi required) Normal 10° 5.6
  • Mounting Bolt Torque 221
  • F In N/m - 30° 0-140
  • Mounting Bolt M8
  • HT4 8
  • TH2 8
  • W2 8
  • W1 22
  • Ht1 110
  • W3 30
  • HT3 80
  • HT2 100
  • TH1 5
  • H 10
  • Weight (kg) 0.45
  • Type Tensioner Arm
SKU: A0150879

50 x 50mm SE-15 Tensioner Arm For Chain and Belt Tensioner

Tensioner Arm For Chain and Belt Tensioner

$116.92
