Specifications
- AIMS SKU A0059955
- Belt Width (mm) 25
- Number of Teeth 32
- Pitch (mm) 10
- No. of Teeth 32
- Outer Diameter (dd) 101.86 mm
- Pitch Circle Diameter (da) 100 mm
- Flange Diameter (dB) 106 mm
- Width (b1) 30 mm
- Overall Width (b) 40 mm
- Hub Diameter (d) 65 mm
- Bore Diameter (d) 10
- Finished Bore Hole (max) 32 mm
- Suits Belt Size (width) 25 mm
- Type Pilot Bore Timing Pulley
- Material Aluminium
- Section T10
- Pitch (mm) 10
SKU: A0059955

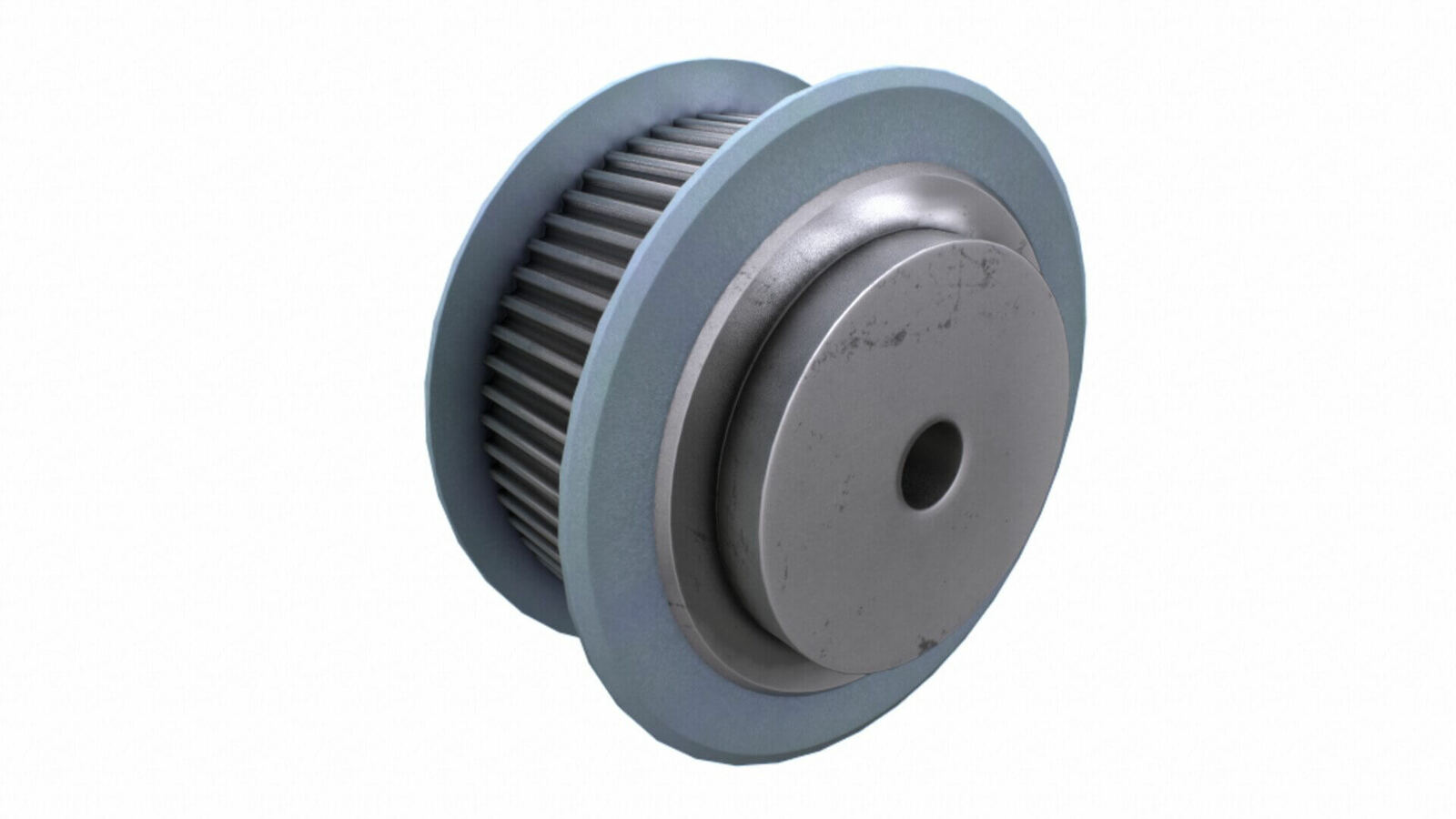

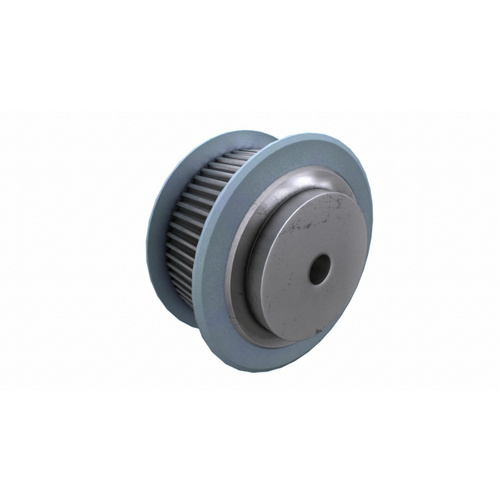

32 Teeth, 25mm Belt Width T10 Timing Pulley Pilot Bore 40-T10-32PB - Al
Pilot Bore Timing Belt Pulley
$273.38
