Specifications

AIMS SKU A0147696
Brand FYH
Model Number FB209/FYH

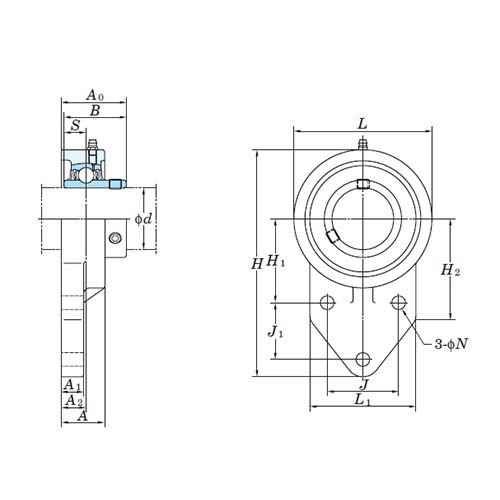

L1 (mm) 80
A0 (mm) 50.2
Shaft Diameter (d) 45mm (1 5/8 - 1 3/4")
Shaft Diameter d (mm) 45
Static Load (c0r) kN 21.3
Dynamic Load (cr) kN 34.1
N (mm) 11
J1 (mm) 43
J (mm) 54
H1 (mm) 65
A2 (mm) 20
Bolt Size (mm) M10
Factor Fo 14
L (mm) 106
h2 (mm) 76
H (mm) 174
b (mm) 49.2
A (mm) 34
S (mm) 19
A1 (mm) 18

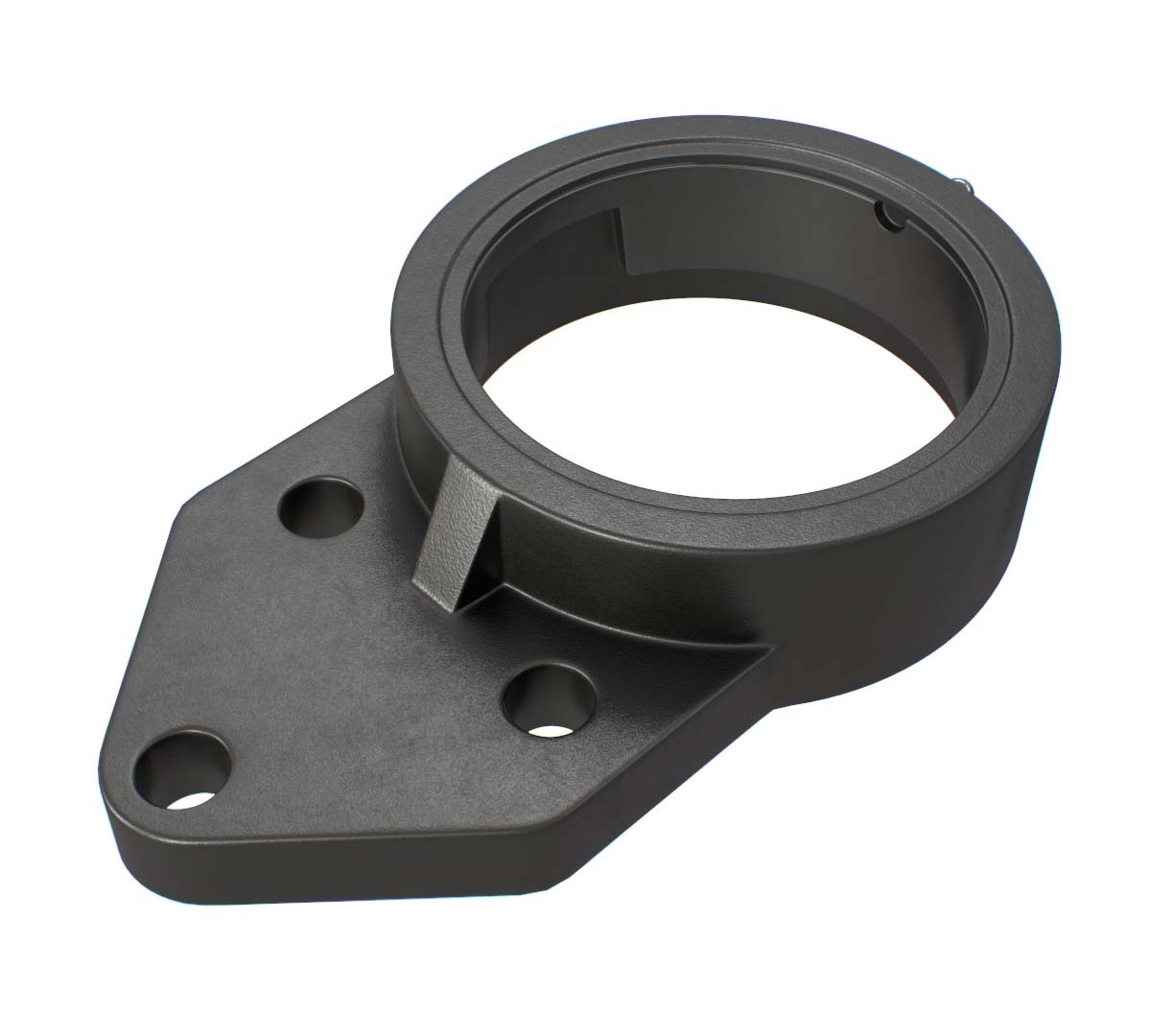

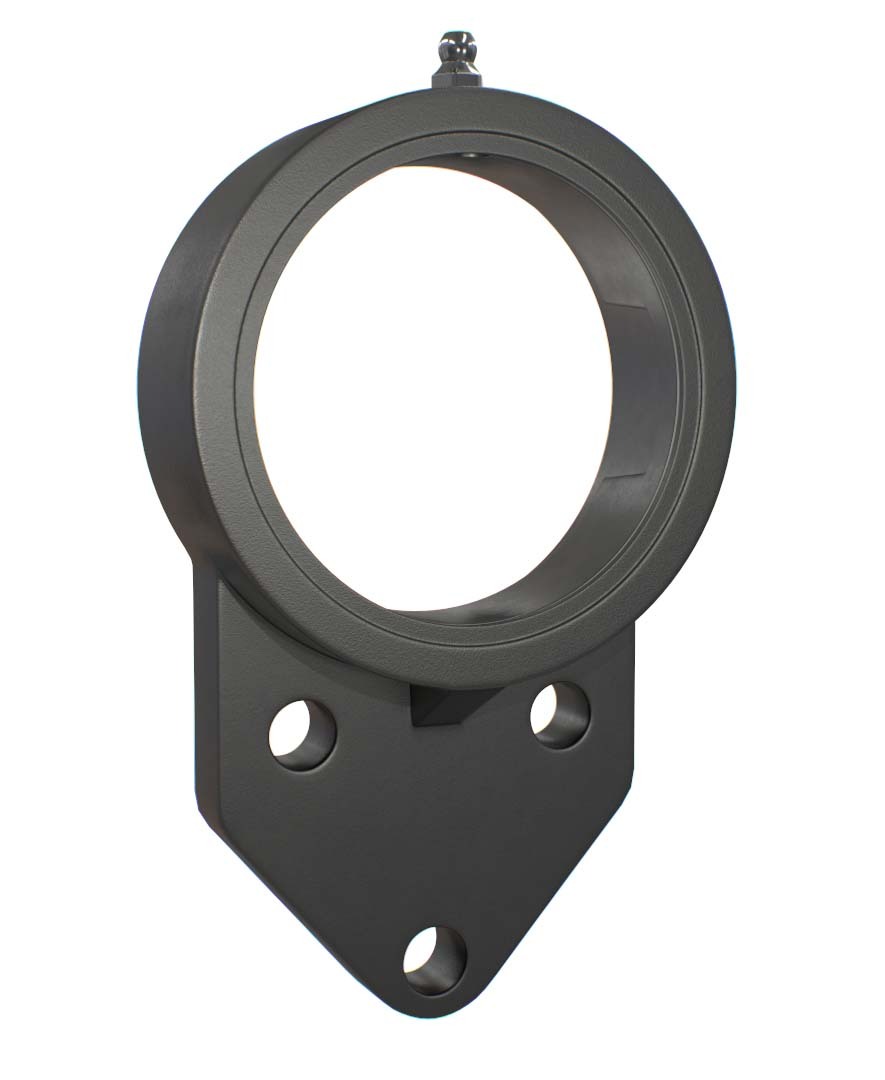

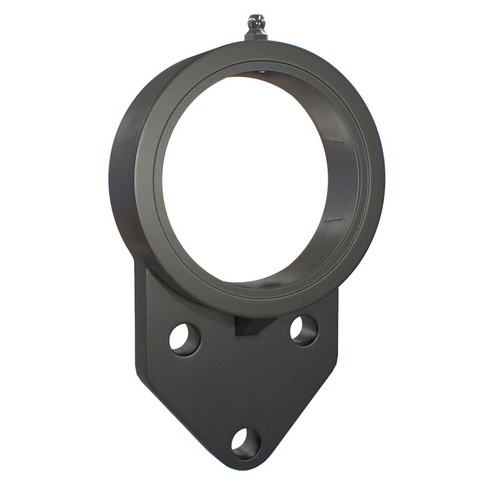

• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Three Bolt Offset Flange
