Description

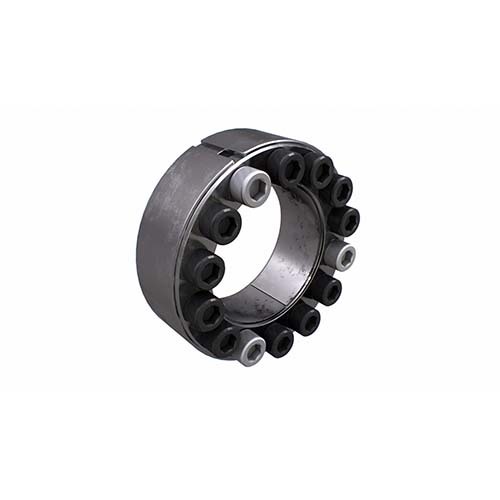

Locking Assembly (Self Locking Units Type 1)

Locking Assemblies provide reliable, high strength keyless connections by converting locking screw clamp loads into radial contact pressures applied simultaneously to both the shaft and the bore of the mounted component.

The resulting zero-backlash mechanical interference fit will accommodate a high torque, thrust, bending, and/or radial loads.

Locking Assemblies provide reliable, high strength keyless connections for shaft-driven devices.

When the Locking Units bolts are tightened plates engage with both the shaft and the inside circumference of the driven component.

Specifications

AIMS SKU A0124503

Brand Reach

Size M16X50

Dimensions (D) mm 305

Dimensions (L1) mm 50

Dimensions (L2) mm 56

Dimensions (L) mm 72

Transmissible Torque Kn 860

Transmissible Axial Force Nm 103162

Shaft Surface Pressure N/mm2 211

Hub Surface Pressure N/mm2 166

Clamping Screws Din No. 30

Screws Tightening Torque Nm 290

Dimension (d) mm 240
