Description

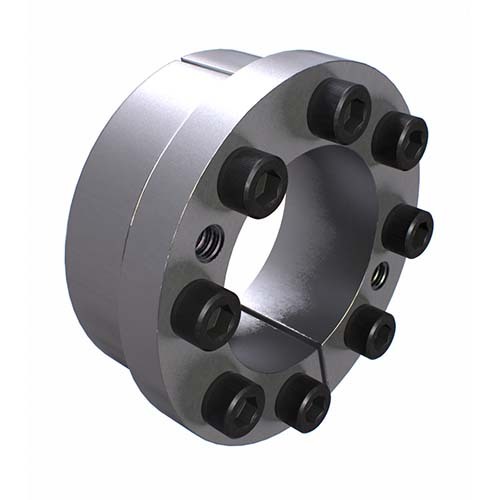

Locking Assembly - Self-Centering Unit Type 7

Locking Assemblies provide reliable, high strength keyless connections by converting locking screw clamp loads into radial contact pressures applied simultaneously to both the shaft and the bore of the mounted component.

The resulting zero-backlash mechanical interference fit will accommodate a high torque, thrust, bending, and/or radial loads.

Locking Assemblies provide reliable, high strength keyless connections for shaft-driven devices.

When the Locking Units bolts are tightened plates engage with both the shaft and the inside circumference of the driven component.

Specifications

AIMS SKU A0124598

Brand Reach

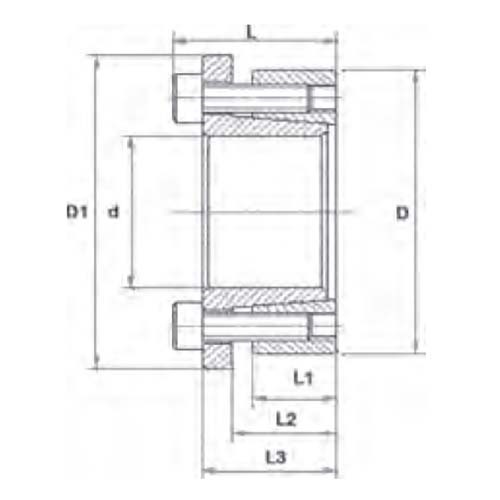

Dimensions (D) mm 225

Dimensions (L1) mm 44

Dimensions (L2) mm 50

Dimensions (L) mm 78

Dimensions (D1) mm 234

Transmissible Torque Kn 356

Transmissible Axial Force Nm 30276

Shaft Surface Pressure N/mm2 140

Hub Surface Pressure N/mm2 106

Screws Tightening Torque Nm 230

Clamping Screws No. 12

Clamping Screws Size M14x40

Dimensions L3 (mm) 64
