Specifications

AIMS SKU A0143399

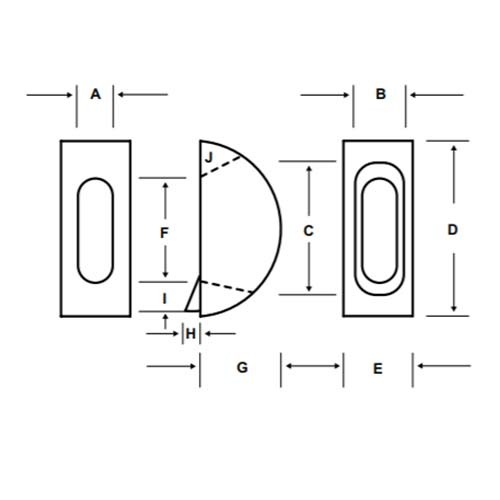

Dimension I (mm) 13
Dimension F (mm) 28
Dimension C (mm) 49
Size M12/M16
Dimension H (mm) 4
Dimension E (mm) 36
Dimension B (mm) 22
Dimension J 54°
Dimension G (mm) 28
Dimension D (mm) 57
Dimension A (mm) 18

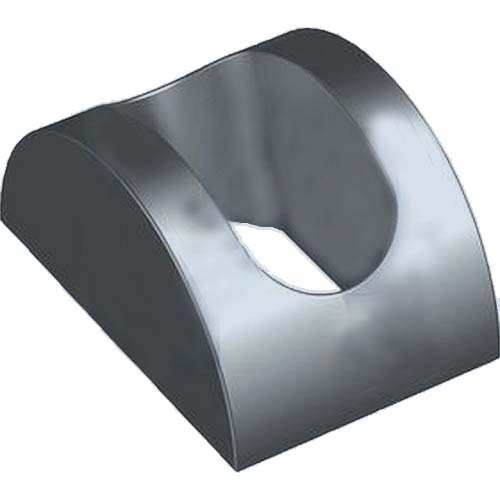

• Type Bracing Bracket
• System of Measurement Metric
• Material Steel
• Finish Zinc Plated
• Low Tensile / High Tensile Low Tensile
