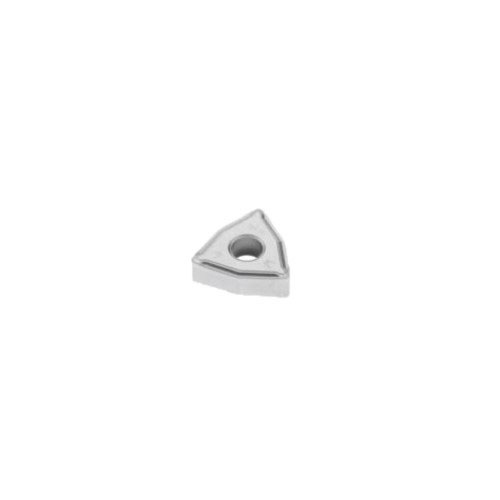

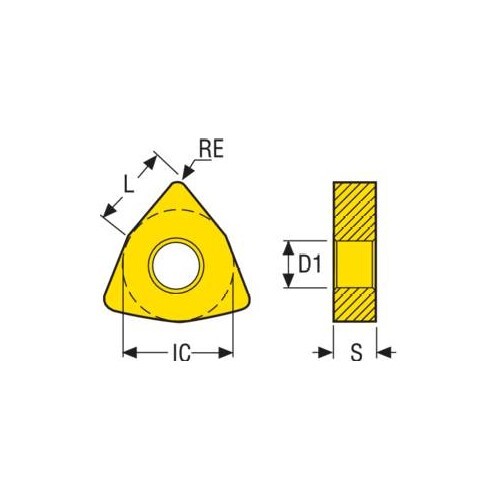

Seco Turning Insert W Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - W-MF2 Grade TP2501 ± 0.13/± 0.05mm Tolerance WNMG060408W-MF2,TP2501 10pcs

Turning Insert WNMG Insert Style - W-MF2 Grade TP2501

• W shape code.

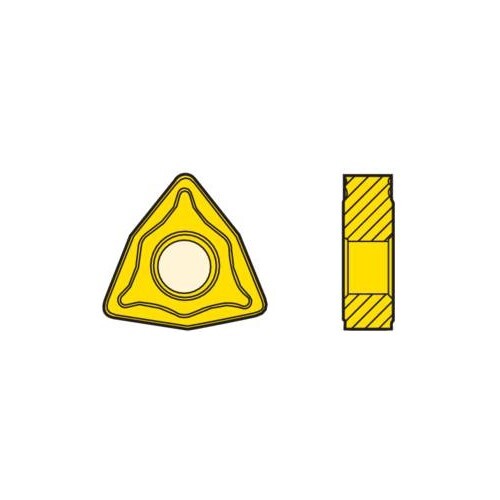

• G insert type, with hole and chipbreaker on both faces.
• TP2501 insert grade.

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

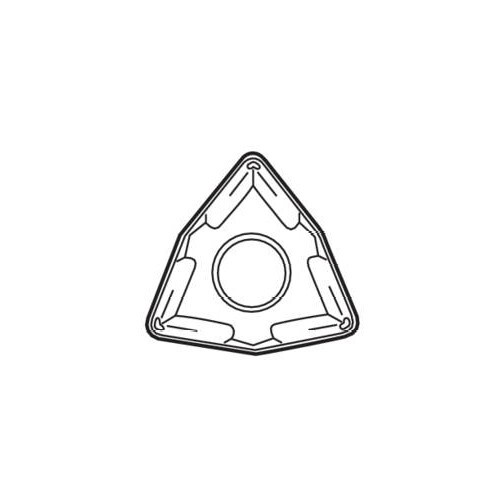

W-MF2 Chipbreaker Prog.ramme

• First choice for finishing with both positive and negative inserts.
• Chipbreaker is suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish.
• Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
