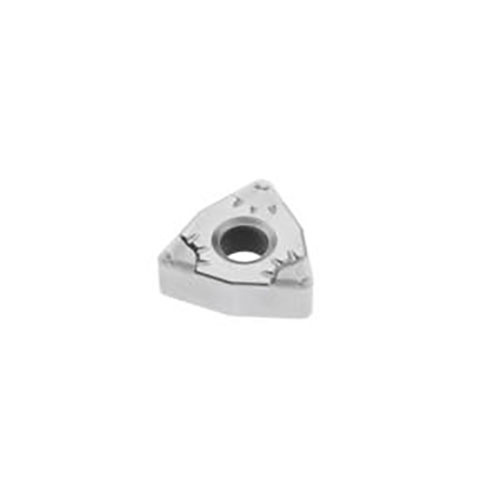

Seco Turning Insert W Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF5 Grade TP0501 ± 0.13/± 0.05mm Tolerance WNMG080408-MF5,TP0501 10pcs

Turning Insert WNMG Insert Style - MF5 Grade TP0501

• W shape code.
• G insert type, with hole and chip breaker on both faces.
• TP0501 insert grade.

TP0501 Insert Grade

• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF5 Chipbreaker Programme

• Chipbreaker intended for medium finishing of steel and stainless steel at high feeds.
• Very easy cutting and open geometry.
• Indicative machining range: f = 0,2–0,8 mm/rev, ap = 0,2–2,7 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
