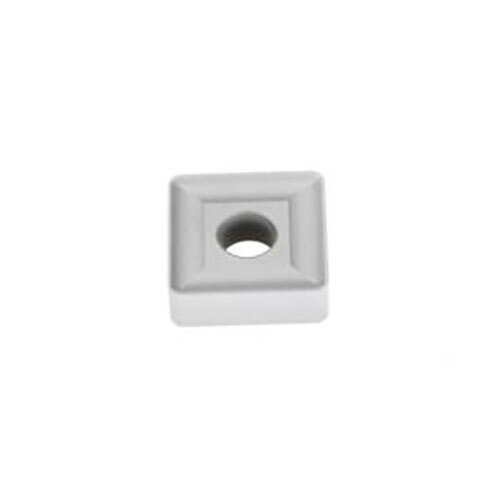

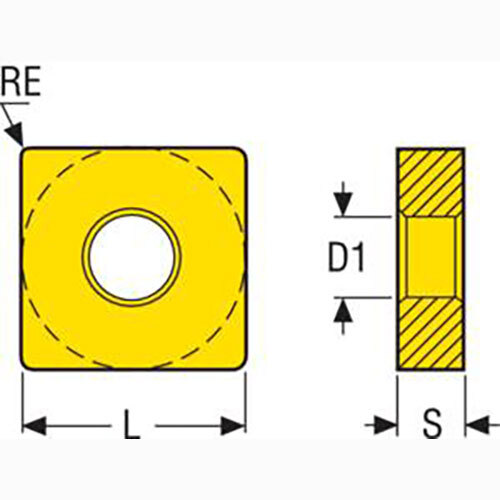

Seco Turning Insert S Shape Code 6.35 x 1.6 x 19.05mm M Insert Type - R56 Grade TP3501 ± 0.13/± 0.05mm Tolerance SNMM190616-R56,TP3501 10pcs

Turning Insert SNMM Insert Style - R56 Grade TP3501

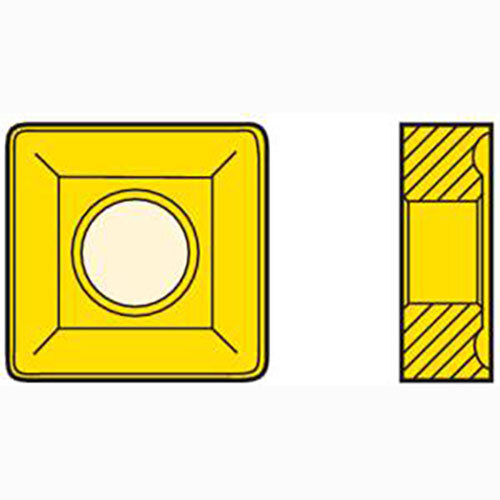

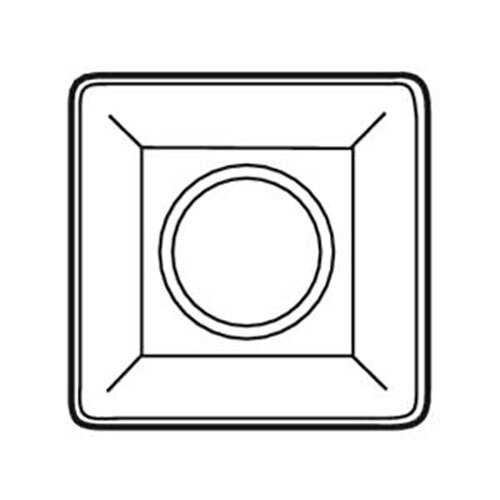

• S shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP3501 insert grade.

TP3501 Insert Grade

• Duratomic® grade.
• Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R56 Chipbreaker Programme

• Chipbreaker with easy-cutting geometry for single-sided inserts. Intended for stainless steel machining applications.
• Indicative machining range: f = 0,4–0,8 mm/rev, ap = 2–12 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
