Description

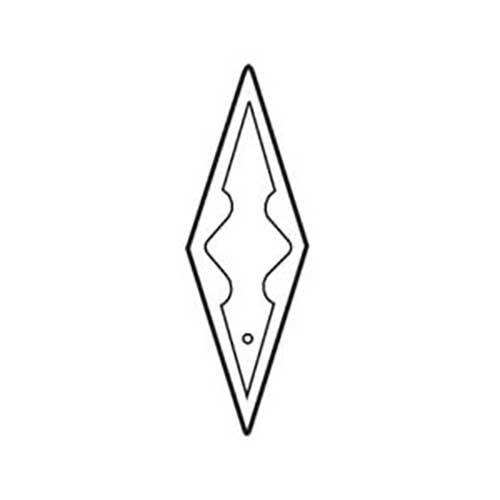

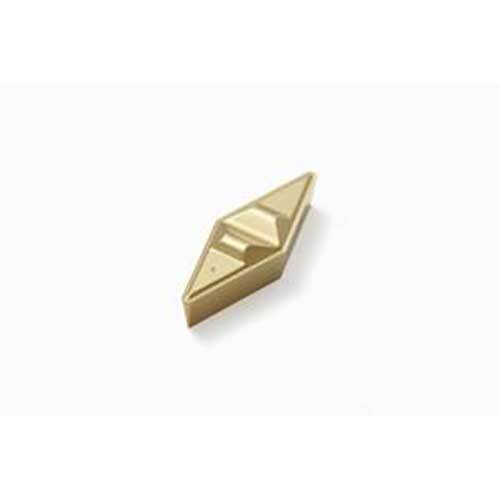

Turning Insert CP200 Grade (VCGR)

  • CP200 grade.
  • V, Insert Shape Code (SC).
  • 16, Insert Seat Size Code (SSC).

About CP200 Grade

  • Carbide PVD.
  • Hard micrograin grade principally intended for finishing in superalloys and titanium.
  • It also works well in stainless steel.
  • (Ti, Al) N + TiN

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0121939
  • Brand Seco
  • Model Number 00072293
  • Barcode Number 72293000000508
  • Designation VCGR160404,CP200

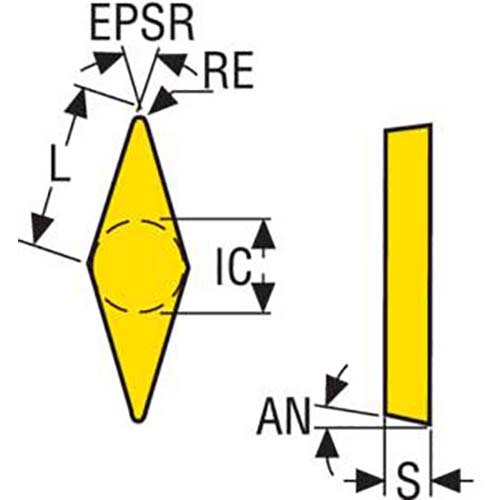

  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Seat Size Code (SSC) 16
  • Cutting Edge Effective Length (LE) mm 16.2
  • Grade Type Carbide PVD
  • Theoretical Cutting Edge Length (L) mm 16.6
  • Inscribed Circle Diameter (IC) mm 9.53
  • Corner Radius (RE) mm 0.4
  • Insert Hand (IH) Neutral
  • Insert Included Angle (epsr) Deg 35.0 deg
  • Insert Shape Code (SC) V
  • Insert Thickness (S) mm 4.76
  • Cutting Edge Count (CEDC) 2
  • Type Turning Insert
  • Insert Shape Code (SC) V
  • Insert Hand (IH) Neutral
  • Grade CP200
SKU: A0121939

Seco General Turning Insert 0.4 x 4.76 x 16.6mm CP200 Grade Neutral (VCGR) VCGR160404,CP200 Pack of 5

Turning Insert CP200 Grade (VCGR)

$285.04
