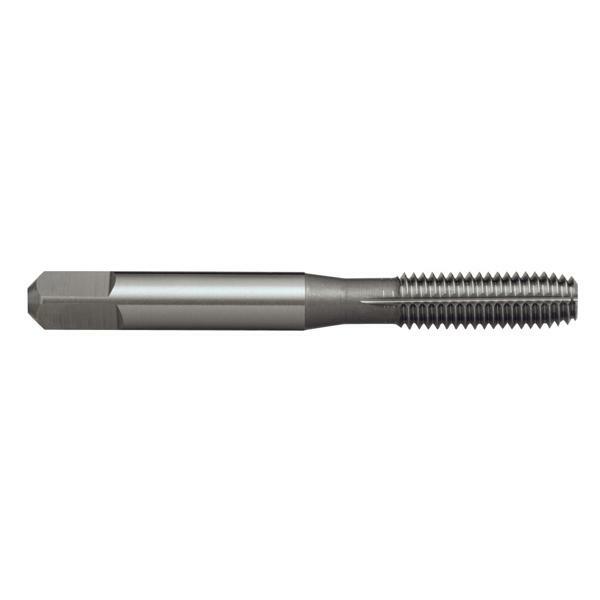

Sutton T399 Metric Thread Forming Tap - Bottoming - Short - HSSE V3 - Sutton Tools

Description

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5 x d1
TiN For longer tool life

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: GH4 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy =12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy =12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0014975

Brand Sutton Tools

Model Number T3990250

Barcode Number 9311963348049

Shank (mm) 2.8

L1 (mm) 45

Pitch (mm) 0.45

L4 (mm) 5

L2 (mm) 10

Drill Size (mm) 2.3

Sq 2.24

Diameter (metric) M2.5

Group Code T399
System of Measurement ISO529
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Application N (for normal general purpose type materials)
Nut Tolerance GH4 / 6H
Max Cut Depth 1.5xD
Tap Type Fluteless - Single Coolant Groove
Shank Form Reinforced Shank (with square drive)
