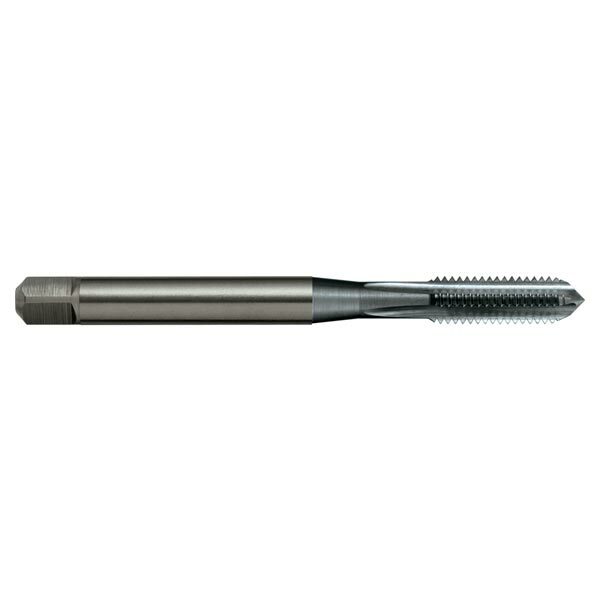

Sutton T297 Metric Straight Flute Tap - Carbide TiCN

Sutton T297 Metric Straight Flute Tap - Carbide TiCN

SKU: A0014289

$529.99
$529.99
Inc. GST

Available

The Sutton T297 Metric Straight Flute Tap by Sutton Tools is a 0 manufactured from Sub-Micron Grade Solid Carbide VHM-ISO K15-K30. It provides the Max Cut Depth 1.5xD and is suitable for Hardened steel: Hardened & Tempered.
Buy Now

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

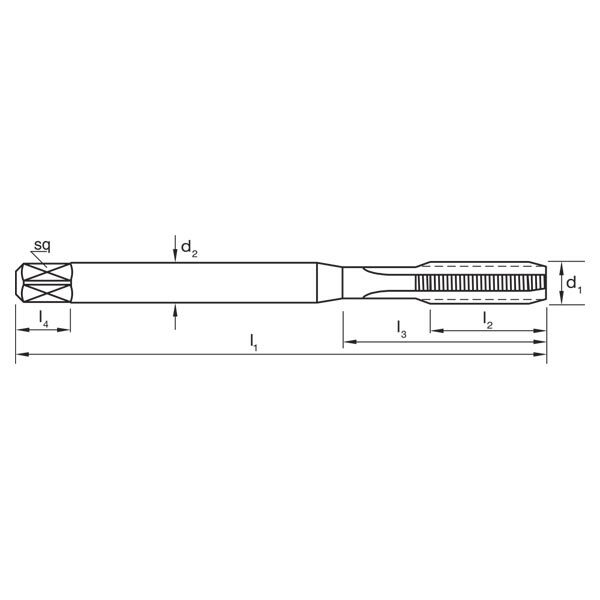

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 4
  • Drill Size (mm): 2.55 (drill)
  • Pitch (mm): 0.5 (pitch)

Features

  • XH, use in hardened steels 42-52 HRc
  • VH, use in hardened steels 50-60 HRc
  • Through & blind holes
  • Depths up to approx. 1.5 x d1

Specifications

  • Designation: VH (for very hard materials)
  • Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN371 / DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form D / 4 x P

Applications

  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Hardened steel: Hardened & Tempered
  • Cast Iron: Hardened & Tempered

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 4
  • Drill Size (mm): 2.55 (drill)
  • Pitch (mm): 0.5 (pitch)

Specifications

  • Designation: VH (for very hard materials)
  • Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN371 / DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form D / 4 x P

Applications

  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Hardened steel: Hardened & Tempered
  • Cast Iron: Hardened & Tempered

Features

  • XH, use in hardened steels 42-52 HRc
  • VH, use in hardened steels 50-60 HRc
  • Through & blind holes
  • Depths up to approx. 1.5 x d1
