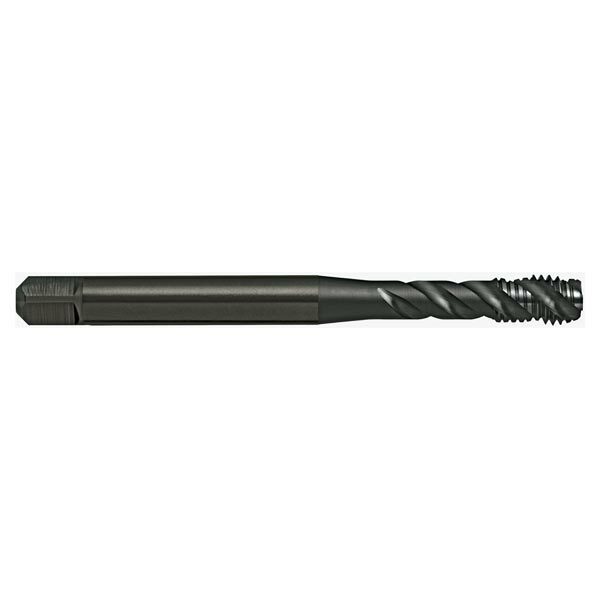

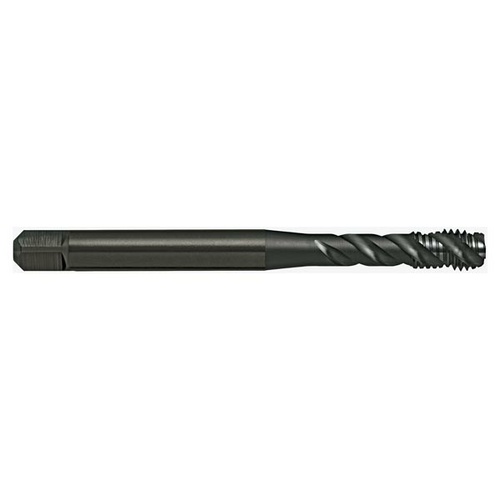

Sutton T261 UNC Spiral Flute Tap - R45 VADH - Premium HSS Blue

Sutton T261 UNC Spiral Flute Tap - R45 VADH - Premium HSS Blue

SKU: A0014018

$283.97
$283.97
Inc. GST

Available

The Sutton T261 UNC Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3). It provides Drill Size 2.3 mm (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed.
Buy Now

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

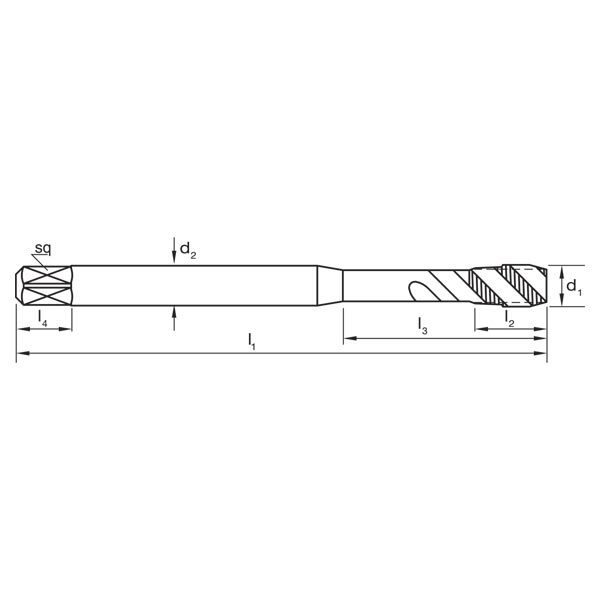

Dimensions

  • d1 (mm): 0.112
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 5
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 2
  • Drill Size (mm): 2.3 (drill)
  • TPI: 40 (TPI)

Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Dimensions

  • d1 (mm): 0.112
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 5
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 2
  • Drill Size (mm): 2.3 (drill)
  • TPI: 40 (TPI)

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1
