  • Spot weld drills with a 45mm overall length and 60º taper on the shank to suit spot weld pneumatic disconnectors
  • Sutton Tools spot weld drills are designed for vehicle body repairs
  • For quick and precise drilling through existing auto panel spot welds, releasing damaged panels and enabling replacements to be fitted

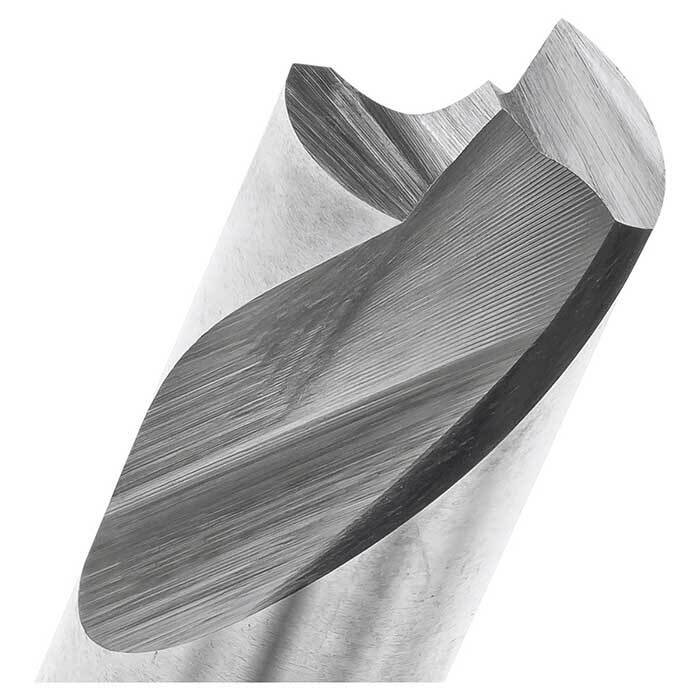

  • Spot weld drills have a spur point designed to cut through the weld on one panel while leaving only a slight mark in the second panel


  • Centre nib enables accurate positioning and less drilling pressure without work hardening
  • Shallow point design cuts through top panel while only slightly marking second panel
  • 45mm short rigid drill designed for use with spot weld pneumatic disconnectors

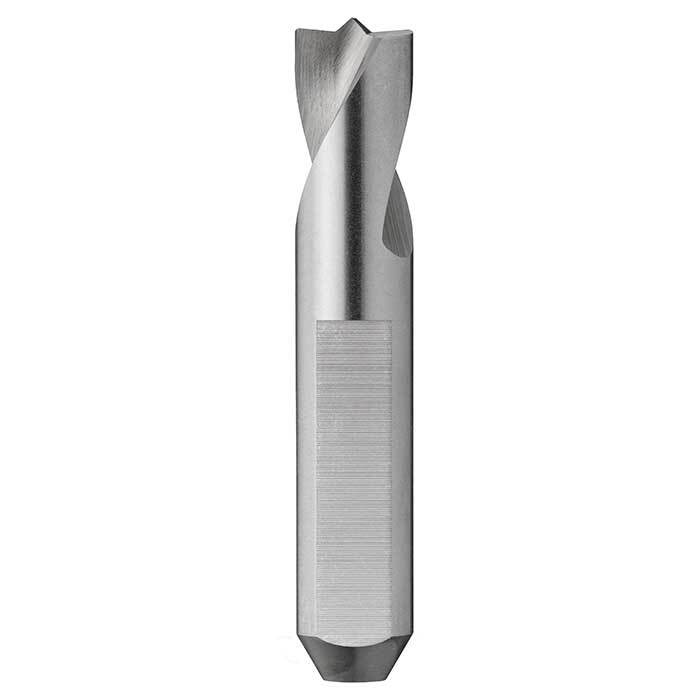

  • Flatted shanks with 60° taper for good location in the disconnector
  • Made from HSS Co. The 8% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures


  • Material: High Speed Steel Cobalt-8
  • Finish: Bright
  • Shank Form: Flat
  • X: als
  • Cutting Edges: ul
  • Standard: Sutton


  • Optimal for PVC Plastic
  • Optimal for Acrylic
  • Optimal for Mineral Rock Wool Foams (EPS, PUR)
  • Optimal for Polystyre
  • Optimal for Leather
  • Optimal for Rubber
  • Optimal for Fibreglass
  • Optimal for Carbon Fibre


  • AIMS SKU A0007048
  • Brand Sutton Tools
  • Model Number D2050060
  • Barcode Number 9311963607245
  • Thread Diameter (mm) 6
  • Overall Length (mm) 45
  • Group Code D205
  • Type Spot Weld Drill Bit
  • System of Measurement Metric
  • Material High Speed Steel Cobalt (HSSE Co8%)
  • Finish Bright
  • Shank Form Flat
SKU: A0007048

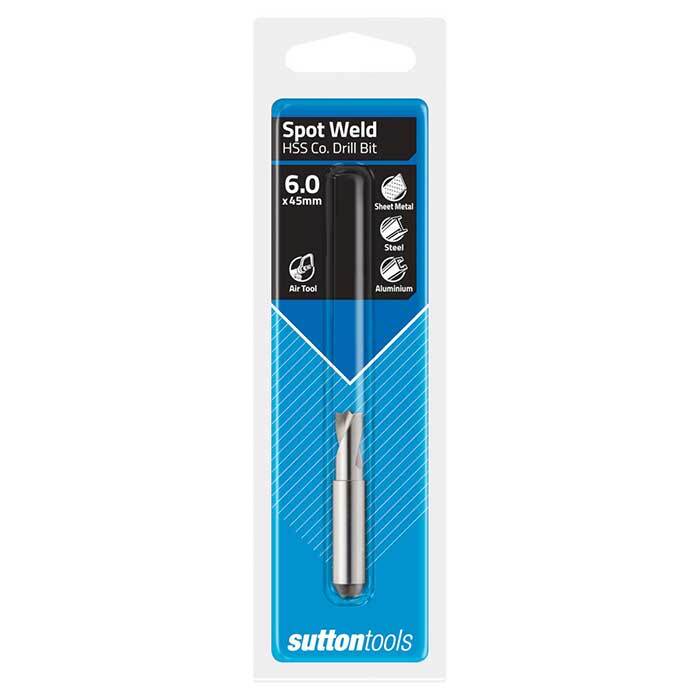

Sutton D2050060 6mm Revolver Spot Weld Drill Bit 45mm long, 8% Cobalt HSS

Sutton Tools Spot Weld Drill Bits - Pneumatic

RRP $31.41
SAVE $12.05 (38%)
