Description

Descriptions

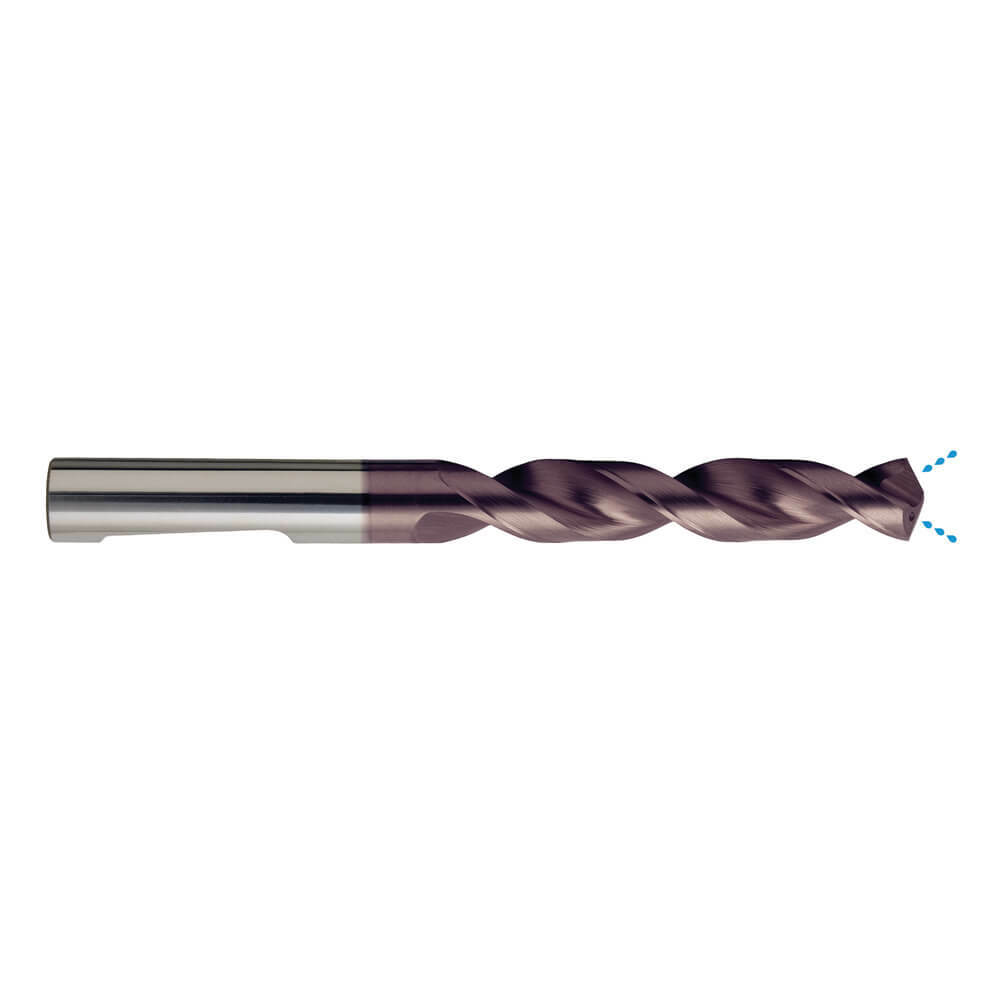

  • Short flute length jobber drill
  • Alternative to carbide where application lacks rigidity

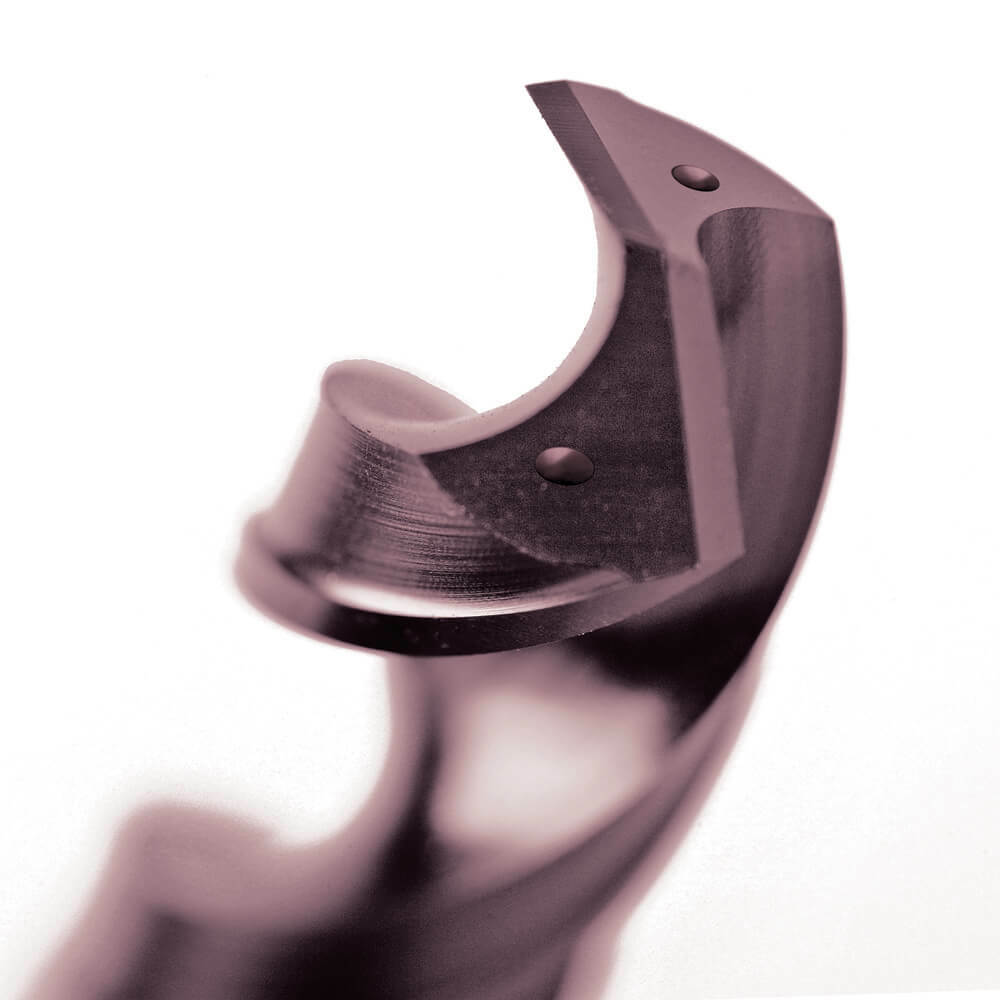

  • Coolant fed directly to the cutting edges to help evacuate the swarf from the hole
  • For use in CNC machines with through spindle coolant supply
  • Endmill shank for greater accuracy
  • TiAlN for longer tool life

Specifications

  • Designation: NH
  • Material: High Speed Steel Cobalt
  • Finish: TiAIN
  • Maximum Cut Depth: 5XD
  • Shank Form: E
  • Helix Angle: R40 IK
  • X: ru
  • Point Tolerance: h8
  • Point Type: 130° 4 Facet Form B
  • Cutting Edges: ul
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting
    • ~ 0.15 %C- 125 HB
    • ~ 0.45 %C- 190 HB
    • ~ 0.45 %C- 250 HB
    • ~ 0.75 %C- 270 HB
  • Optimal for
    • Steel - Low alloy & cast < 5% of alloying elements- 180 HB; 275 HB
    • Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
    • Stainless Steel - Precipitation Hardening- 250 HB
    • Cast Iron, Grey - Ferritic / Pearlitic- 180 HB; Pearlitic- 260 HB
    • Cast Iron, Nodular (Ferritic- 160 HB; Pearlitic- 250 HB)
    • Cast Iron, Malleable
      • Ferritic- 130 HB
      • Pearlitic- 230 HB
    • Al & Mg
      • cast alloy ≤12% Si - Non Heat Treatable – 75 HB
      • cast alloy ≤12% Si - Heat Treatable – 90 HB
    • Cu & Cu alloys
      • Brass- 90 HB
      • Brass/Bronze – 100 HB
    • Cast Fe – Chilled – 400 HB

Specifications

  • AIMS SKU A0006355
  • Brand Sutton Tools
  • Model Number D1820500
  • Barcode Number 9311963507422

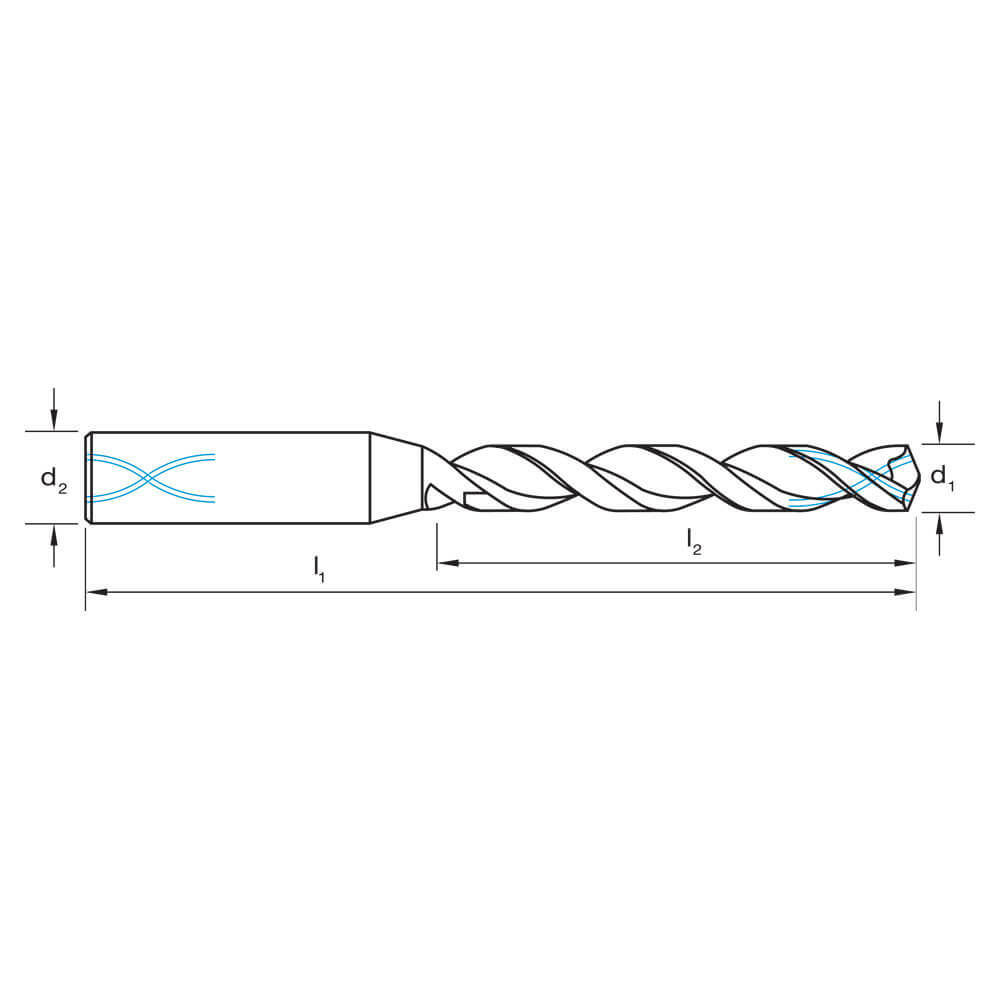

  • Thread Diameter (mm) 5
  • Overall Length (mm) 82
  • Shank (mm) 6
  • Flute Length (mm) 44
  • Group Code D182
  • Type Jobber Drill Bit
  • System of Measurement Metric
  • Material High Speed Steel Cobalt (HSS Co5%)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Helix Angle R40 IK
  • Point Tolerance h8
  • Shank Form E
  • Maximum Cut Depth 5XD
  • Point Form 130 4 Facet Form B
SKU: A0006355

Sutton D1820500 5mm Jobber R40 UNI-IK HSS-Co. TiAlN M35 Steel

Sutton Tools Jobber Drill Bits - R40 UNI IK

$146.14
