Description

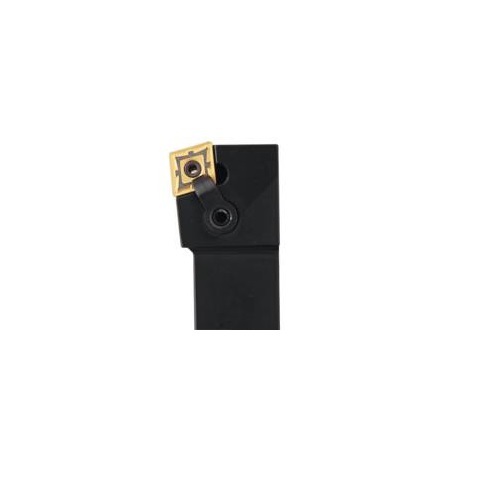

Seco Turning External Toolholder Multiple Lock 173.1 x 38.1 x 6mm Right 75° C Insert Shape MCKNR-20-6D

Turning External Toolholder (Multiple Lock - K Type - C Insert Shape)

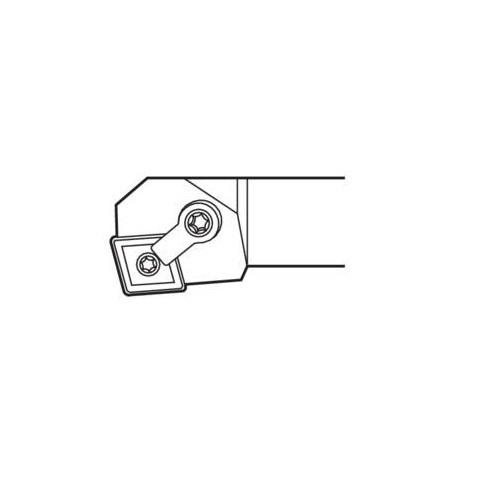

Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders.
C insert shape.
K tool type, offset with a 15° end cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115591

Brand Seco

Model Number 00012996

Barcode Number 12996000000100

Net Weight (kg) 1.2

Type Turning Toolholder

Designation MCKNR-20-6D

Insert Clamping System (ICS) Multiple Lock

Connection Text Workpiece Side (ctws) CN1906

Direction Of Cutting (hand) Right

Rake Angle Orthogonal (gamo) -6.0 deg

Insert Shape Code (SC) C

Cutting Edge Length (mm) 6

Tool Type K Type

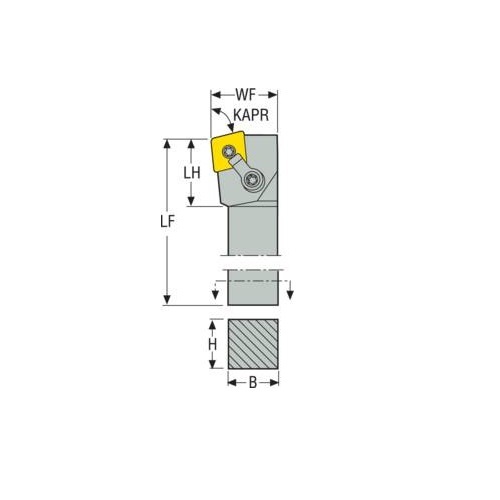

Height Of Tool Holder Shank (H) mm 31.8

Shank Width (b) mm 31.8

Connection Text Machine Side (CTMS) 31.75

Shank Type Square shank

Insert Size Inscribed Circle Diameter (mm) 6

Inclination Angle (LAMS) -6.0 deg

Functional Length (LF) 173.1mm

Tool Cutting Edge Angle (KAPR) 75.0 deg

Version (internal/external/both) External

Rake Angle Axial (gamp) -6.0 deg

Functional Width (WF) mm 38.1

Tool Cutting Edge Angle Code (KAPRC) K
