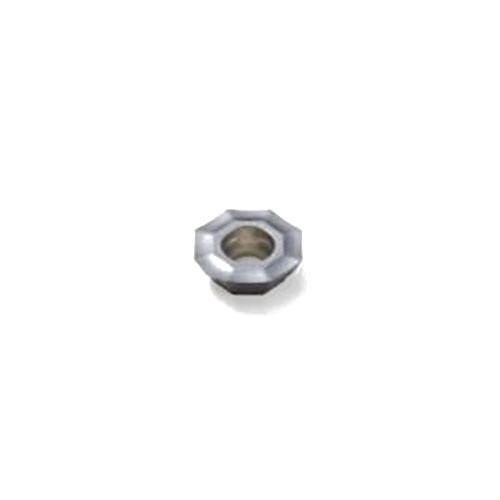

Seco Octomill Face Milling Insert Size 05 3.77 x 12.7 x 12.7mm Neutral Grade F30M X Type M05 Designation OFEX05T305N-M05,F30M Pack of 10

Octomill Insert Size 05 Grade F30M X Type (OFEX05T3-M05)

• Medium machining condition.
• OFEX05T3 Insert Seat Size Code (SSC).
• X type.

F30M Grade

• Basic grade for Minimaster inserts and thread milling inserts.
• Also suitable for milling stainless steel, hardened steel, and superalloys.
• (Ti, Al) N – TiN.

About Seco Octomill Insert Size 05

• Cutter range 32-315 mm (1.25-5 inch).
• Max depth of cut 3.5 mm (0.138 inches).
• Recommended depth of cut 2.5 mm (0.098 inch).
• 8 cutting edges, single-sided inserts.
