Seco Internal Turning Toolholder Steel Top Clamp 305 x 25.4 x 33mm Left 95° W Insert Shape A16-DWLNL-3-C

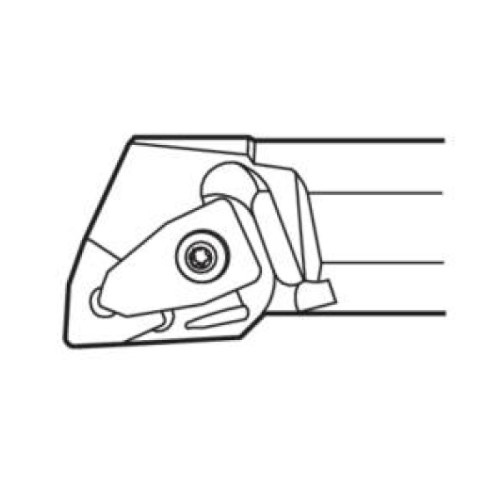

Turning Internal Toolholder (Steel - Top Clamp - L Type - W Insert Shape)

Top clamp using center hole).
W insert shape.
0° ISCA (Insert Side Clearance Angles).
Screw lock.
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

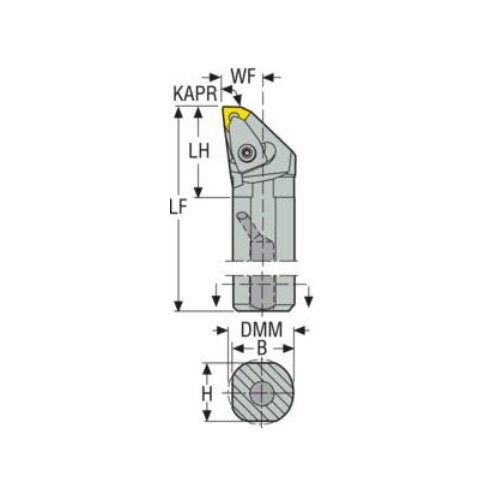

Specifications

AIMS SKU A0114728

Brand Seco

Model Number 02605020

Barcode Number 5020026000100

Net Weight (kg) 0.938

Type Turning Toolholder

Designation A16-DWLNL-3-C

Tool Holder Type Steel

Tool Cutting Edge Angle (KAPR) 95.0 deg

Version (internal/external/both) Internal

Rake Angle Orthogonal (gamo) -5.0 deg

Insert Size Inscribed Circle Diameter (mm) 3

Tool Cutting Edge Angle Code (KAPRC) L

Shank Diameter (DMM) 25.4

Height Of Tool Holder Shank (H) mm 22.9

Connection Text Workpiece Side (ctws) WN0604

Direction Of Cutting (hand) Left

Shank Type Cylindrical

Functional Width (WF) mm 11

Cutting Diameter Internal Minimum (DCINN) 33

Insert Clamping System (ICS) Top Clamp

Head Length (LH) mm 35

Shank Width (b) mm 24.4

Connection Text Machine Side (CTMS) 25.4

Inclination Angle (LAMS) -11.0 deg

Functional Length (LF) 305
