Description

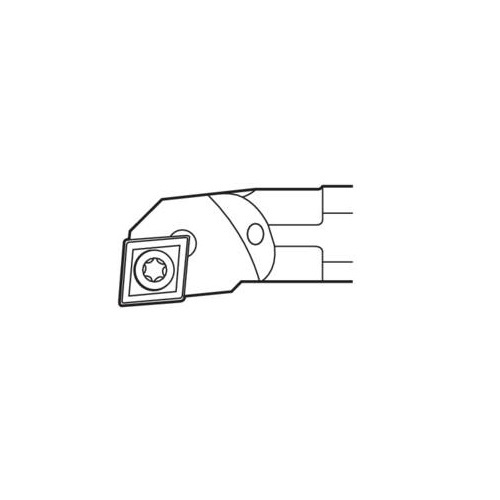

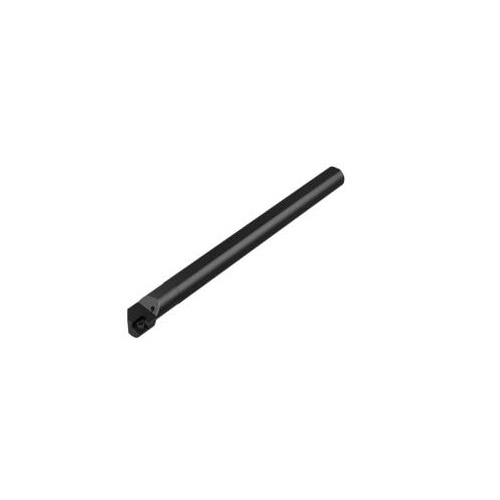

Seco Internal Turning Toolholder Steel Screw Lock 254 x 19.05 x 25.4mm Right 95° C Insert Shape A12-SCLCR-3

Turning Internal Toolholder (Steel - Screw Lock - L Type - C Insert Shape)

Steel with coolant passage.
C insert shape.
7° ISCA (Insert Side Clearance Angles).
Screw lock.
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114723

Brand Seco

Model Number 02829690

Barcode Number 29690028000103

Net Weight (kg) 0.48

Type Turning Toolholder

Designation A12-SCLCR-3

Tool Holder Type Steel

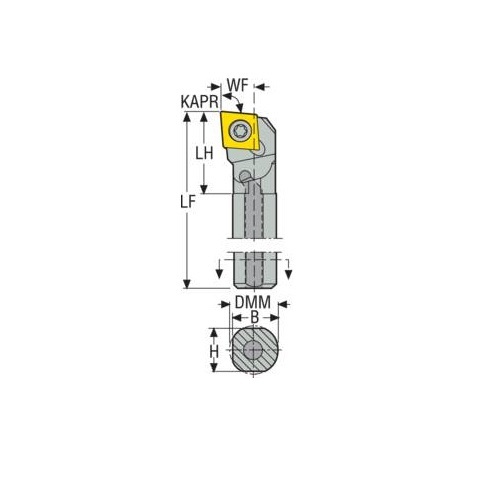

Tool Cutting Edge Angle (KAPR) 95.0 deg

Version (internal/external/both) Internal

Rake Angle Orthogonal (gamo) 0.0 deg

Insert Size Inscribed Circle Diameter (mm) 3

Tool Cutting Edge Angle Code (KAPRC) L

Shank Diameter (DMM) 19.05

Height Of Tool Holder Shank (H) mm 16.5

Connection Text Workpiece Side (ctws) CC09T3

Direction Of Cutting (hand) Right

Shank Type Cylindrical

Functional Width (WF) mm 12.7

Cutting Diameter Internal Minimum (DCINN) 25.4

Insert Clamping System (ICS) Screw Lock

Head Length (LH) mm 19.1

Shank Width (b) mm 18.6

Connection Text Machine Side (CTMS) 19.05

Inclination Angle (LAMS) -10.0 deg

Functional Length (LF) 254
