Description

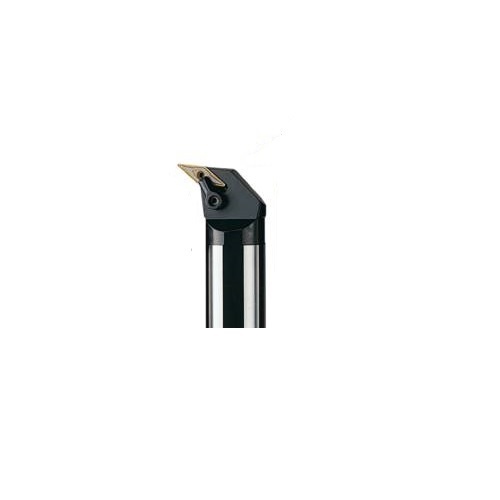

Seco Internal Turning Toolholder Solid Steel Multiple Lock 300 x 32 x 16mm Left 95° V Insert Shape L Tool S32T-MVLNL16

Turning Internal Toolholder (Solid Steel - Multiple Lock - L Type - V Insert Shape)

Solid Steel.
V insert shape.
0° ISCA (Insert Side Clearance Angles).

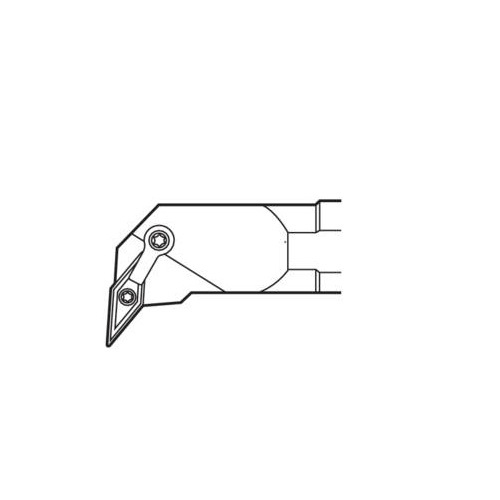

Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114381

Brand Seco

Model Number 75002281

Barcode Number 2281750000108

Net Weight (kg) 1.762

Type Turning Toolholder

Designation S32T-MVLNL16

Tool Holder Type Solid Steel

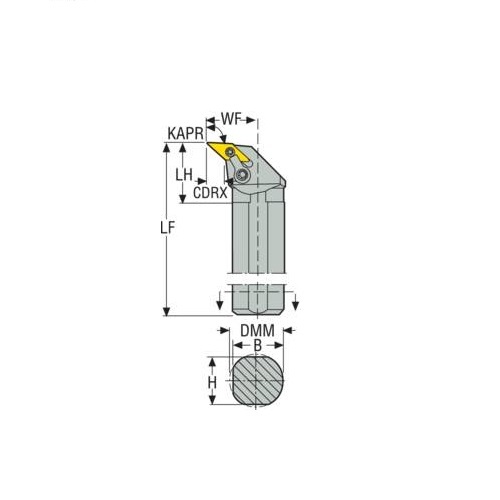

Tool Cutting Edge Angle (KAPR) 95.0 deg

Version (internal/external/both) Internal

Rake Angle Orthogonal (gamo) -5.0 deg

Functional Width (WF) mm 30

Cutting Diameter Internal Minimum (DCINN) 48

Shank Diameter (DMM) 32mm

Height Of Tool Holder Shank (H) mm 30

Connection Text Workpiece Side (ctws) VN1604

Direction Of Cutting (hand) Left

Shank Type Cylindrical

Cutting Depth Radial Max (CDRX) mm 13

Inclination Angle (LAMS) -12.0 deg

Tool Type L Type

Insert Clamping System (ICS) Multiple Lock

Head Length (LH) mm 50

Shank Width (b) mm 31

Connection Text Machine Side (CTMS) 32

Cutting Depth Max (CDX) mm 13

Tool Cutting Edge Angle Code (KAPRC) L

Functional Length (LF) 300mm
