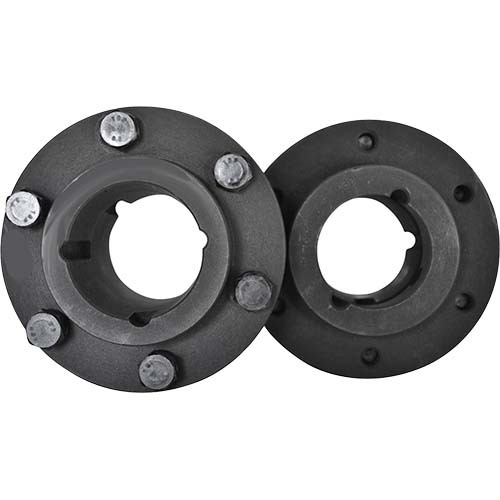

Rigid Coupling Taperlock Hub Flange Assembly

• A rigid coupling is used in situations where shaft alignment is essential as the two cast iron hubs bolted together to prevent any such event.

About Rigid Coupling

• Rigid couplings are used in situations where shaft alignment is essential.
• A misaligned coupling can cause damage and downtime.
• When properly fitted this torsionally rigid coupling helps prevent any such event.
• Rigid couplings are Taper Lock ready and available in a range of sizes to accommodate almost any shaft size.

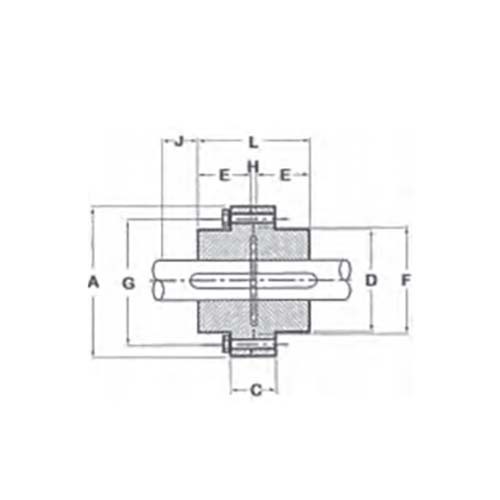

• Rigid couplings consist of 2 flanges, available in internal and external entry (H & F).
• This gives two possible coupling assemblies HF and FF.
• When connecting horizontal shafts, choose the most convenient method.
• When connecting vertical shafts use assembly FF only.
