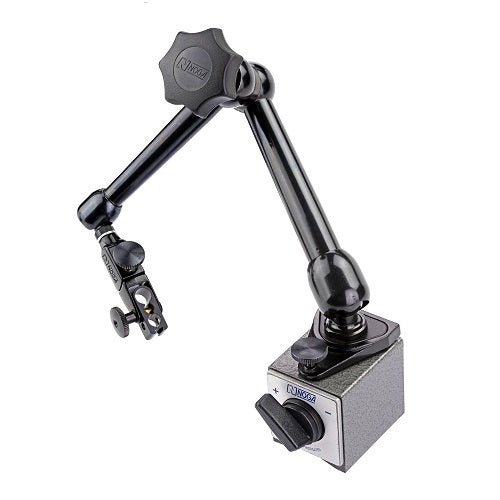

Noga MG6161 MG Holder with Double Fine Adjustment

SKU: A0112629

Type: Measuring Tool

$590.24

Inc. GST

🔧Precision Engineered Design

⚙MG Holder with Double

📐Adjustable Configuration

🔩For Workshop & Jobsite Measurement

🏗CNC & Deburring Applications

☑Magnetic Hold Feature

Available

Product Highlights −

MG Holder with Double Fine Adjustment

New double fine adjustment.
Top: universal swivel clamp.
Bottom: unique single direction.
Unique central locking mechanism with Noga designed spring-loaded bearing.
Five-axis holder.
Powerful on/off magnetic base 80 Kg. (176lbs).
Instant fastens in any position.
Fast and easy to set up gauges into the required position.
Black finished arms.
Clamp holds: 6mm, 8mm, 3/8" and dovetail.
Bottom thread: Ext. M8.
Weight: 2.00kg.
Bottom arm: 133mm.
Top arm: 113mm.
Total length: 317mm.
Magnet force: 800N.
Magnet width: 50mm.
Magnet length: 60mm.
Magnet height: 55mm.
