JUUKO Dual Speed Remote Control and Receiver 4 Button 1R2T1

JUUKO Dual Speed Remote Control and Receiver 4 Button 1R2T2

Specifications +

JUUKO K-Series Remote Control Transmitter Specifications

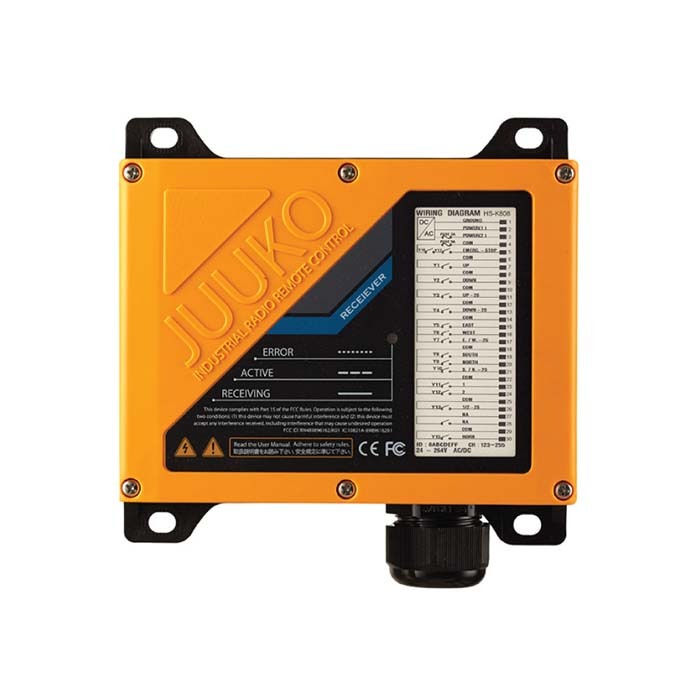

JUUKO HS-Series Receiver Specifications

Features & Benefits +

Products Features

Automatic channel switching allows users to select primary working frequency and secondary working frequency
Range limiting function allows reduction of maximum distance for the transmitter to continue operating
Electronic key-code and automatic shut-off option programmable to prevent accidental activation of the transmitter
Eco power management system to save battery life
Receive and displays via 4 LED signals coming from the receiver (to relay action feedback)
Mushroom type EMO button
Internal Bootloader, firmware up to date by using a computer
Wireless pairing procedure by using pendant push buttons
Independent LED's to indicate the status of battery
Data logging Black Box system included, which records date and remote usage
Suitable for all Hitachi, CEH, PEH hoists and trolleys

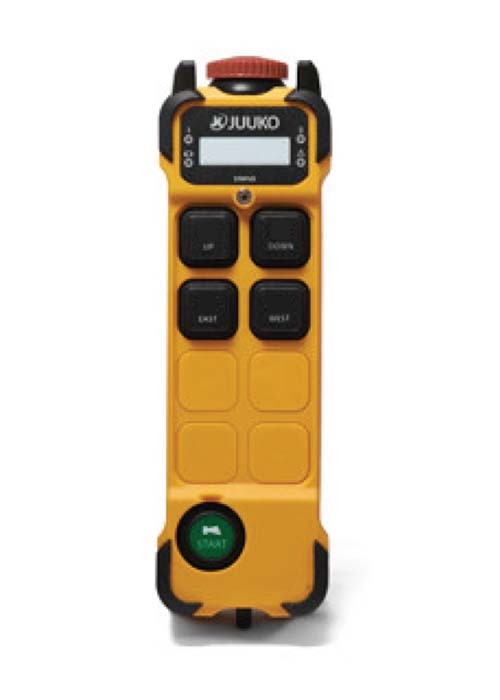

Transmitter Features

Ergonomic Design: Easy to use and provide comfort
Protection: Constructed with ultra-high impact resistant corner bumpers for added protection and a rubber protective cover underneath the EMO button which is dust-resistant.
Durability: The back of the remote control features a matt black rubber finish which is durable and offers a secure and comfortable grip.
Multi-control system - master/slave, take/release, tandem

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

JUUKO Dual Speed Remote Control and Receiver 4 Button 1R2T

SKU: A0176644

Type: Remote Control

$1,594.15

Inc. GST

📦Rubber Construction

⚙Dual Speed Remote Control

📐Industrial Supply Grade

🔩Safe Lifting Operations

🏗Lifting & Rigging Operations

☑Built for Reliable Performance

Available

Product Highlights −

JUUKO Dual Speed Remote Control and Receiver 4 Button

The K-Series remote controls are easy to use and provide comfort due to their ergonomic design. The transmitter is constructed with ultra-high impact resistant corner bumpers for added protection and a rubber protective cover underneath the EMO button which is dust-resistant. The back of the remote control features a matt black rubber finish which is durable and offers a secure and comfortable grip.

Size
193 x 57 x 51mm
Weight
325g
Frequency Band
433MHz
Typical Operating Range
100m
Control System
PLL
Antenna Impedance
50Ω
Radio-frequency Power
<10dBm
Power Supply
DC3V (LR6(AA)1.5V*2)
Average Power Consumption
16mA a 3Vcc
Operating and Storage Temperature
(-25°C)-(+55°C) / (-40°C)-(+85°C)
Housing Material
PA(30%fg)
Protection Degree
IP65
Operating Distance
Up to 100m
Antenna Type and Impedance
50ohm

Size
190 x 184 x 64mm
Weight
1800g
Frequency
433MHz
Modulation Method
4FSK
Sensitivity
-122dBm@baud 1.2Kbps
Control System
PLL
Antenna Impedance
50Ω
Power Supply
24V~264 AC/DC
Average Power Consumption
15mA@AC220V (Standby Mode)

About JUUKO

JUUKO is a pioneer in the development and manufacturing of industrial radio remote controls with a clear focus on safety, efficiency and productivity. Their products are used in over 20 countries around the world in the hoisting and cranes industry. The perfect tool for magnetic cranes, overhead cranes, electric chain hoists and tandem operations.
