Goliath NPT Circular Solid HSS Button Die1

Goliath 1/16" x 27 TPI NPT 1" Circular Solid HSS Button Die - F80YJB

Goliath 1/8" x 27 TPI NPT 1" Circular Solid HSS Button Die - F81YJB

Goliath 1/8 x 27 TPI NPT 1-1/2" Circular Solid HSS Button Die - F81YJD

Goliath 1/4" x 18 TPI NPT 1-1/2" Circular Solid HSS Button Die - F82YJD

Goliath 3/8" x 18 TPI NPT 1-1/2" Circular Solid HSS Button Die - F83YJD

Goliath 1/4" x 18 TPI NPT 2" Circular Solid HSS Button Die - F82YJE

Goliath 3/8" x 18 TPI NPT 2" Circular Solid HSS Button Die - F83YJE

Goliath 1/2" x 14 TPI NPT 2" Circular Solid HSS Button Die - F84YJE

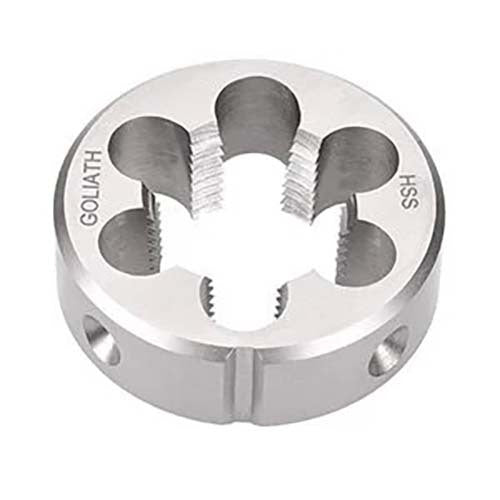

Goliath 3/4" x 14 TPI NPT 2" Circular Solid HSS Button Die - F85YJE

Goliath 1" x 11.5 TPI NPT 3" Circular Solid HSS Button Die - F87YJG

Goliath 1-1/4" x 11.5 TPI NPT 3" Circular Solid HSS Button Die - F88YJG

Goliath 1-1/2" x 11.5 TPI NPT 3" Circular Solid HSS Button Die - F89YJG

Goliath 2" x 11.5 TPI NPT 4" Circular Solid HSS Button Die - F91YJG

Goliath 1" x 11.5 TPI NPT 2" Circular Solid HSS Button Die - F87YJE

Goliath 1-1/2" x 11.5 TPI NPT 4" Circular Solid HSS Button Die - F89YJH

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Goliath NPT Circular Solid HSS Button Die

SKU: A0199284

Type: Threading Die

$302.03

Inc. GST

⚙High Speed Steel (HSS)

⚙NPT Circular Solid HSS

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Goliath NPT Circular Solid HSS Button Die

HSS Circular Solid Button Die
HSS Button Die (also known as Adjustable Die) are designed for cutting external threads.
They are used for threading rods, bolts, and studs, either by hand using a die stock, or by machine using a floating die holder.
Die are manufactured with a thread chamfer to aid starting.
M2-HSS material provides increased wear resistance and superior thread accuracy.
National Pipe Tapered (NPT) is a US standard for tapered threads used to join pipes and fittings.
ANSI/ASME standard B1.20.1 covers threads of 60¬∫ form with flat crests and roots.
The taper on NPT threads allows them to form a seal when torqued as the flanks of the threads compress against each other.
However, a clearance remains between the crests and roots of the threads, resulting in a leakage around this spiral.
This means that NPT fittings must be made leak-free with the aid of thread seal tape or a thread sealant compound.
For each 12" increase in distance from the end, the diameter increases by 3/4".

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

1/4" / 1-1/2"mm threading die
Model Number: F82YJD
1/16" / 1"mm threading die
Model Number: F80YJB
1/8" / 1"mm threading die
Model Number: F81YJB
1/8" / 1-1/2"mm threading die
Model Number: F81YJD
1" / 2"mm threading die
Model Number: F87YJE
1/2" / 2"mm threading die
Model Number: F84YJE
1/4" / 2"mm threading die
Model Number: F82YJE
1" / 3"mm threading die
Model Number: F87YJG
1-1/4" / 3"mm threading die
Model Number: F88YJG
1-1/2" / 3"mm threading die
Model Number: F89YJG
1-1/2" / 4"mm threading die
Model Number: F89YJH
2" / 4"mm threading die
Model Number: F91YJG
3/8" / 1-1/2"mm threading die
Model Number: F83YJD
3/4" / 2"mm threading die
Model Number: F85YJE
3/8" / 2"mm threading die
Model Number: F83YJE
