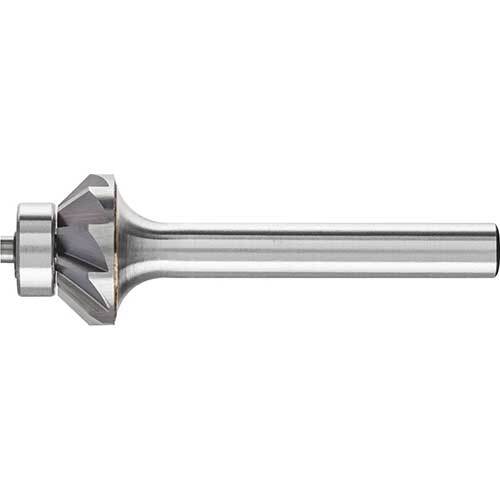

Pferd Radius Burr KSK with Bearing Guide Shank

• Tungsten carbide burrs with the EDGE cut have been developed specifically for defined work on edges.
• They are suitable for chamfering, deburring and edge breaking and rounding, and are mainly used in steel and aluminium construction.

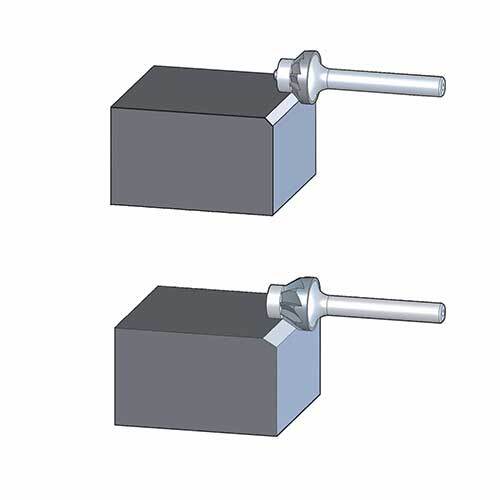

• The special design allows the burr to run directly along the edges, without damage to the workpiece. Thus, exact edge shapes can be created in a single-step operation with either defined chamfers of 30 deg or 45 deg or to a defined radius of 3.0 mm. Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to:
  - ISO 12944-3
  - ISO 8501-3
  - SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198)

Advantages:

• Special design for precise guidance
• Safe and comfortable to guide
• Create an exact edge shape with either defined chamfers of 30 deg or 45 deg, or a defined radius of 3.0 mm in a single-step operation

Application examples:

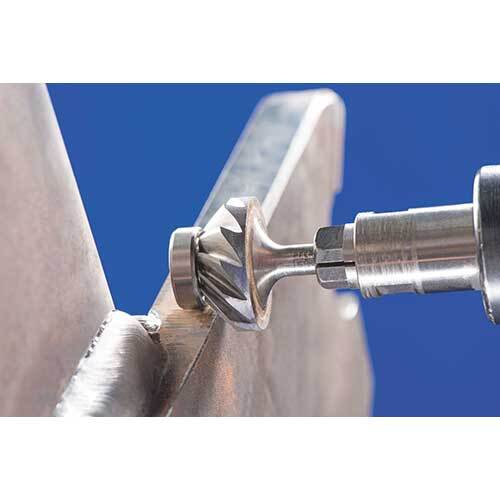

• Rounding edges in preparation for the application of anti-corrosion coatings in shipbuilding, on crane systems and other steel constructions which are exposed to corrosion loading
• Chamfering in weld seam preparation for V-shaped seams (60 deg, ISO 9692-1)
• Chamfering for edge breaking (45 deg)

Recommendations for use:

• Use the burrs counter-rotationally. In order to produce a fine surface, finally pass them over the edges in the direction of the rotation.
