Description +

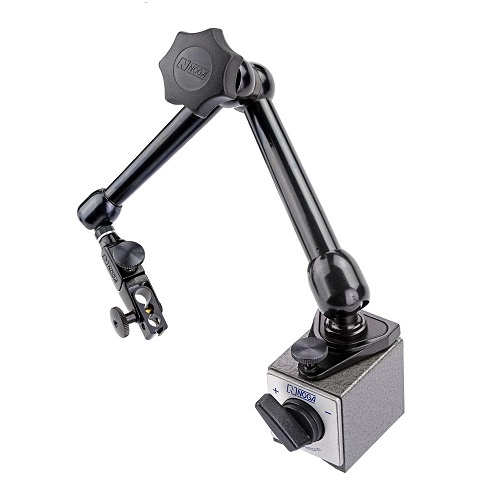

MG Holder with Double Fine Adjustment

New double fine adjustment.
Top: universal swivel clamp.
Bottom: unique single direction.
Unique central locking mechanism with Noga designed spring-loaded bearing.
Five-axis holder.
Powerful on/off magnetic base 80 Kg. (176lbs).
Instant fastens in any position.
Fast and easy to set up gauges into the required position.
Black finished arms.
Clamp holds: 6mm, 8mm, 3/8" and dovetail.
Bottom thread: Ext. M8.
Weight: 2.00kg.
Bottom arm: 133mm.
Top arm: 113mm.
Total length: 317mm.
Magnet force: 800N.
Magnet width: 50mm.
Magnet length: 60mm.
Magnet height: 55mm.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Noga MG6161 MG Holder with Double Fine Adjustment

SKU: A0112629

Type: MG Holder with Double Fine Adjustment

$590.24

Inc. GST

Buy It Now

Available

The Noga MG6161 MG Holder with Double Fine Adjustment by Noga is a MG Holder with Double Fine Adjustment with black finished arms and five-axis. It provides a magnet force of 800N and is suitable for indicator holders and stands.
