Description

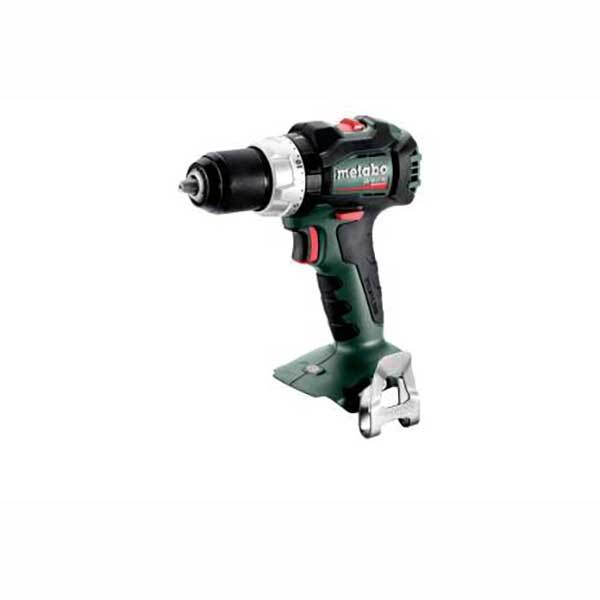

Metabo SB 18 LT BL Cordless Hammer Drill - 602316890

  • Brushless cordless hammer drill with optimal power for demanding applications.
  • Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving.
  • High-performance impact mechanism for optimum drilling performance.
  • Integrated working light to illuminate the contact area.
  • With handy belt hook and bit case which can be fixed either on the right or left side.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Keyless chuck
  • Belt hook and bit case
  • without battery pack, without charger

Technical Data

  • Battery voltage: 18V
  • Maximum torque - soft: 34 Nm / 301 in-lbs
  • Maximum torque, hard: 75 Nm / 663.8 in-lbs
  • Drill-Ø masonry: 13 mm / 1/2"
  • Drill Ø steel: 13 mm / 1/2"
  • Drill-Ø soft wood: 38 mm / 1 1/2"
  • No-load speed: 0 - 600 / 0 - 2100 rpm

Characteristics

Battery voltage 18 V
Maximum torque - soft 34 Nm / 301 in-lbs
Maximum torque, hard 75 Nm / 663.8 in-lbs
Adjustable torque 0.7 - 8 Nm // 6 - 71 in-lbs
Drill-Ø masonry 13 mm / 1/2 "
Drill Ø steel 13 mm / 1/2 "
Drill-Ø soft wood 38 mm / 1 1/2 "
No-load speed 0 - 600 / 0 - 2100 rpm
Maximum impact rate 31950 bpm
Chuck capacity 1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack 1.2 kg / 2.6 lbs
Weight with battery pack 1.6 kg / 3.5 lbs

Vibration

Drilling in metal 2.9 m/s²
Uncertainty of measurement K 1.5 m/s²
Impact drilling concrete 17.3 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise emission

Sound pressure level 91 dB(A)
Sound power level (LwA) 102 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0174937
  • Brand Metabo
  • Model Number 602316890
  • Barcode Number 4007430302359
  • Type Hammer Drill
SKU: A0174937

Metabo 18V Brushless LT Class Hammer Drill 75Nm - Tool Only

Metabo SB 18 LT BL Cordless Hammer Drill - 602316890

$411.64
