Description

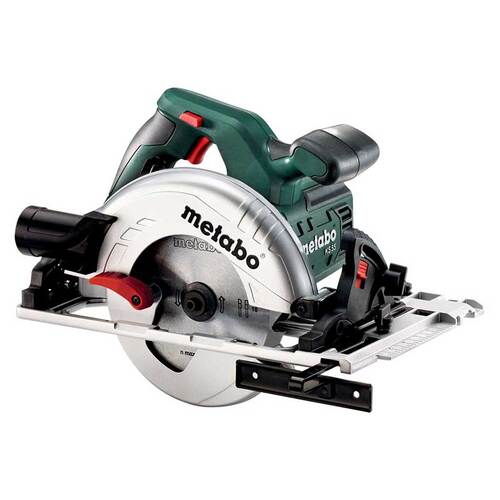

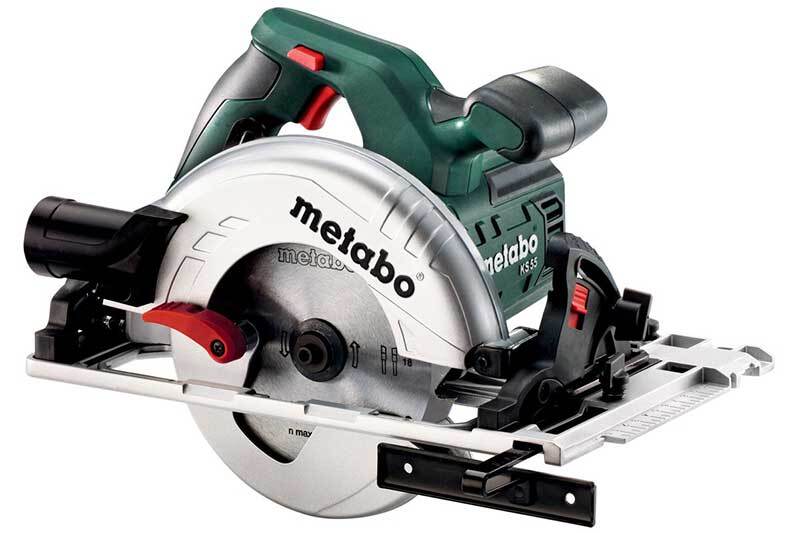

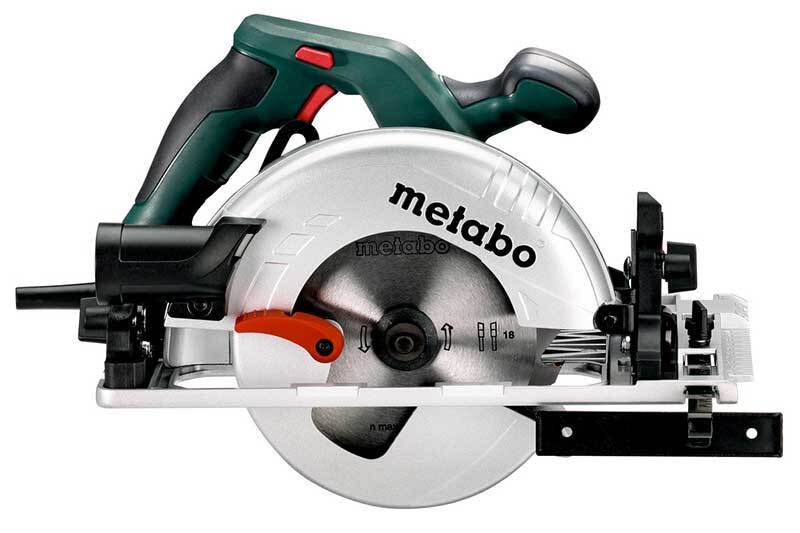

Metabo Circular Saw - KS 55 FS (600955000)

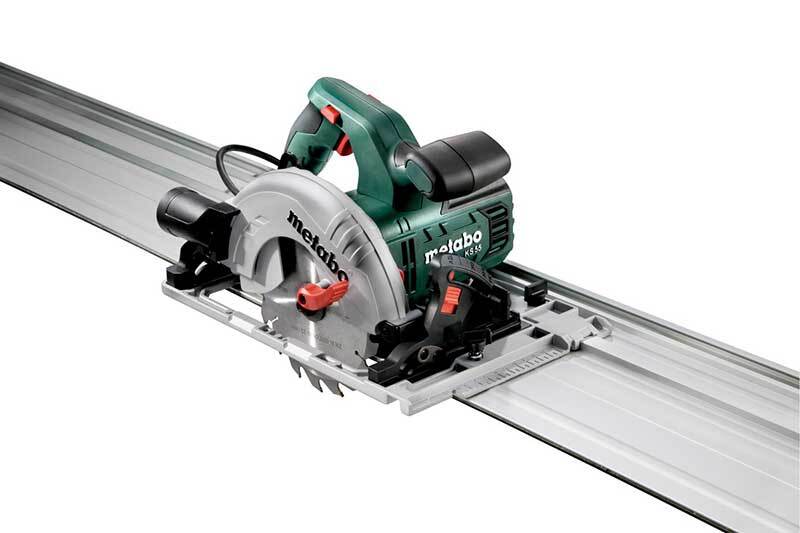

Robust circular saw, can be used directly on guide rails from Metabo and also Mafell, Bosch, Festool, Makita, HiKOKI, Hilti, and other manufacturers.
Light guide plate made from die-cast aluminium.
Grip area with the non-slip soft-grip surface.
Clearly visible cutting indicator for precise sawing after the initial cut.
0° position re-adjustable for highest cutting precision.
Extraction possibility by means of connecting an all-purpose vacuum cleaner.
Adjustment of the machine without tools for using with the precision guide rail.

Note

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to the content and product description.
Accessories are included only if listed in the contents.

Contents

Technical Data

Characteristics

Rated input power	1200 W
Output power	670 W
Maximum cutting depth at 90¬∞	55 mm / 2 5/32 "
Maximum cutting depth at 45¬∞	39 mm / 1 17/32 "
Max. cutting depth with guide rail	50 mm / 1 31/32 "
Saw blade √ò x bore	160 x 20 mm // 6 1/4 x 0.787 "
Swivel range from / to:	‚Äå 0 / + 47 ¬∞
No-load speed	5600 rpm
Revolutions at rated load	4400 rpm
Max. cutting speed	47 m/s / 154 ft/s m/s
Torque	5 Nm / 44 in-lbs
Weight (without power cable)	4 kg / 8.8 lbs
Cable length	4 m / 13 ft
