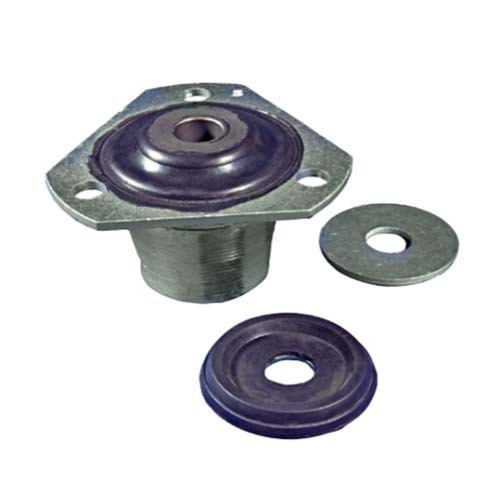

Mackay Recessed Flange Isolator Type 40

  • Designed for high load capacity combined with relatively large static deflections in an axial direction. Their high loading for a given size is obtained by utilising the rubber to the best advantage in both compression and shear.
  • Supplied with overload and rebound washers.
  • Normally assembled with overload and rebound washers to control and limit the movement of the suspended equipment under the action of shock loads. The central fixing bolts should be torque tightened to the recommended values.


  • AIMS SKU A0166486
  • Brand Mackay
  • Model Number M137082
  • Barcode Number 9313699023740
  • Load (kg) 690

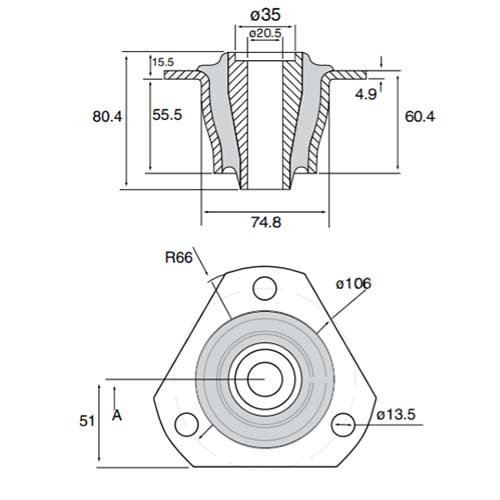

  • Width 74.8
  • Weight (kg) 1.21
  • Centre Hole Diameter 20.5
  • Durometer 60
  • Deflection (mm) 6
  • Height Size (mm) 80.4
  • Hole Diameter 13.5
SKU: A0166486

Mackay M137082 Recessed Flange Isolator Type 40 - 690kg Load

Mackay Recessed Flange Isolator Type 40
