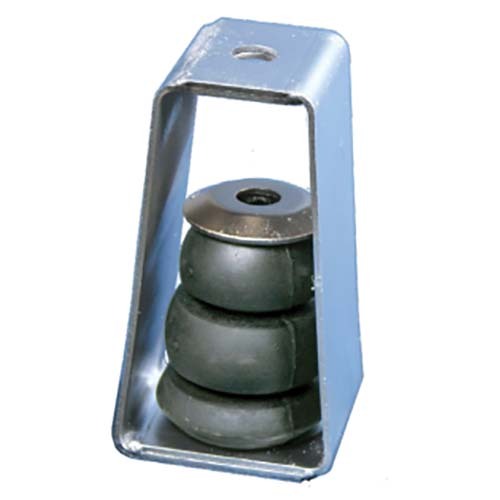

Mackay Suspension Isolator

  • Designed for use in the building and construction industry.
  • Give satisfactory isolation of vibration and structural borne noise transmitted in piping and ductwork.
  • The mountings work equally well when used in heavy pipe installations, air conditioning, ducting, suspended fan units or acoustical ceilings.
  • Supplied in two parts, the mountings are easily installed. The frame is fixed to the building structure by loxin bolts, welding or other suitable means. The rubber flexible element is then installed in the frame and the hanger rod passed through the base of the assembled mount and fastened in position.
  • Height adjustments can be made to ensure the correct location of the suspended unit if threaded hanger rods are used.

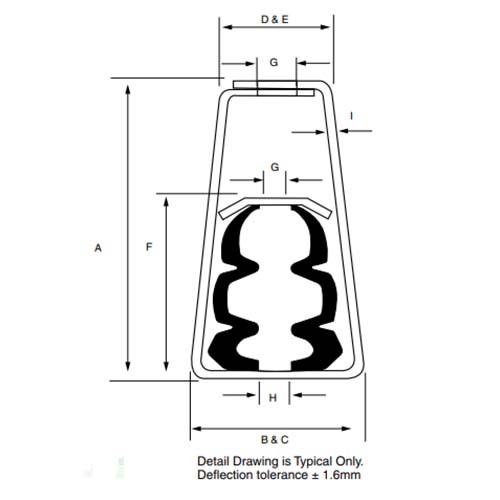

  • Dimension A (mm): 178
  • Dimension B (mm): 102
  • Dimension C (mm): 76
  • Dimension D (mm): 64
  • Dimension E (mm): 76
  • Dimension F (mm): 106
  • Dimension G (mm): 19
  • Dimension H (mm): 32
  • Dimension I (mm): 3.2
  • Compression Load (kg): 91 to 272
  • Compression Deflection (mm): 19 to 37
  • Weight (kg): 1.5


  • AIMS SKU A0170782
  • Brand Mackay
  • Model Number M197
  • Barcode Number 9313699024433
  • Type Suspension Isolator
SKU: A0170782

Mackay M197 Suspension Isolator 91 to 272kg

Mackay Suspension Isolator
