Description

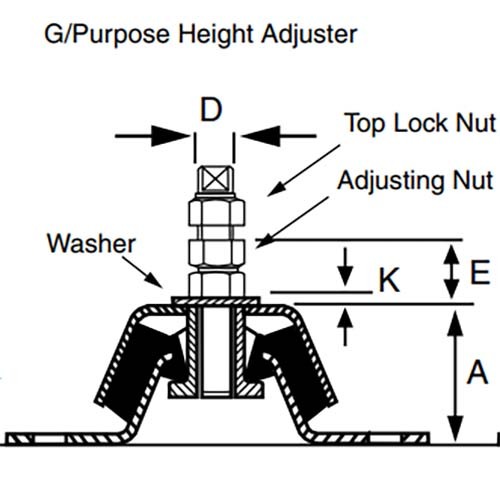

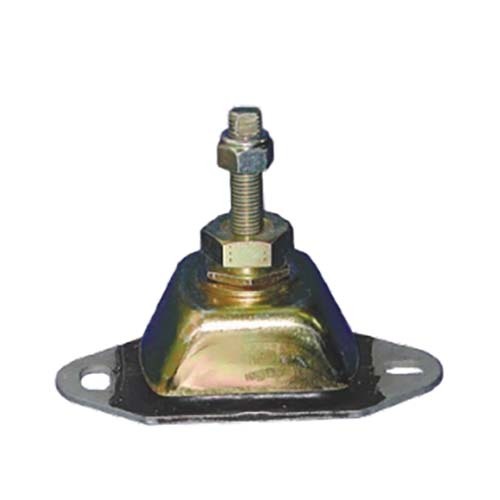

Mackay Isomount With General Purpose Height Adjuster

  • Isomounts are general-purpose vibration isolators suitable for mobile and static equipment installations.
  • Suitable for Marine applications.
  • Isomounts have a mechanically galvanized base and come with a choice of rubber hardnesses, they can also be supplied with two types of specialist height adjusters and a mechanically galvanised base.
  • Isomount isolators are suitable for operation under all types of engines.

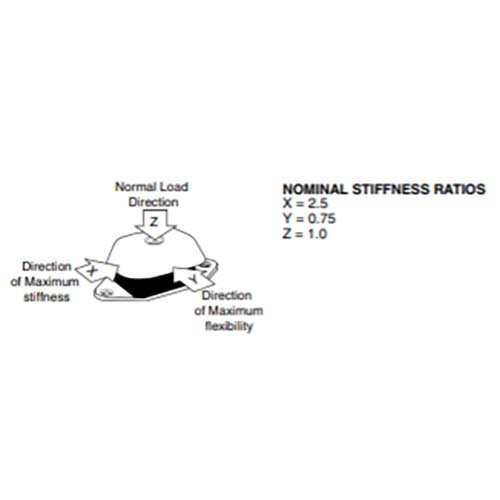

  • They offer 3-way control of engine movement with excellent isolation efficiency. Maximum use of this 3-way control when the isomount isolators are used as engine supports can be obtained by arranging the isolator with their maximum flexibility (Y) at right angles to the engine crankshaft and maximum stiffness (X) in line with the crankshaft. Using the isolators in this manner also has the advantage in marine applications of providing isolation against propeller thrust.
  • The Isomount range also features bump and rebound control which prevents excessive movement under shock loads.
  • Available in three different sizes.

Note: When used in marine engine applications with thrust forces, the maximum load capacity is substantially reduced.

Specifications

  • AIMS SKU A0166384
  • Brand Mackay
  • Model Number M200145
  • Barcode Number 9313699023207
  • Thread Size M12

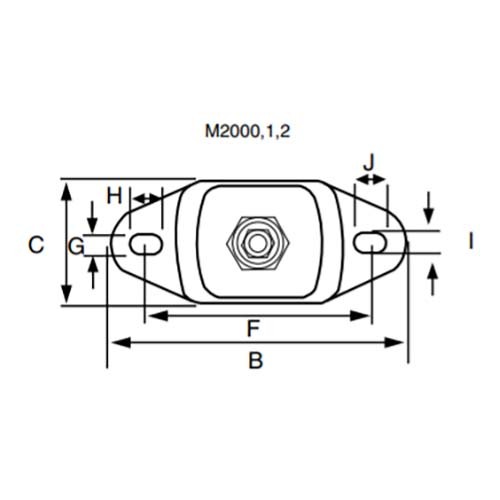

  • Horizontal Diameter (I) mm 14
  • E (Min) mm 22
  • Height Size (mm) 38.5
  • Durometer 45
  • Deflection (mm) 4
  • Washer Thickness (mm) 3
  • Vertical Diameter (H) mm 11
  • E (Max) mm 32
  • Length in (mm) 120
  • Weight (kg) 0.5
  • Maximum Load With Thrust (kg) 35
  • Vertical Diameter (J) mm 11
  • Horizontal Diameter (G) mm 14
  • Centre To Centre 100
  • Width 60 mm
  • Item Type 2
  • Maximum Load Without Thrust (kg) 50
SKU: A0166384

Mackay Isomount With General Purpose Height Adjuster 120 x 60 x 38.5mm, 50kg

Mackay Isomount With General Purpose Height Adjuster

$252.62
