Description

***Dust/Oil Seal Shield M189 sold separately. Contact AIMS for assistance***

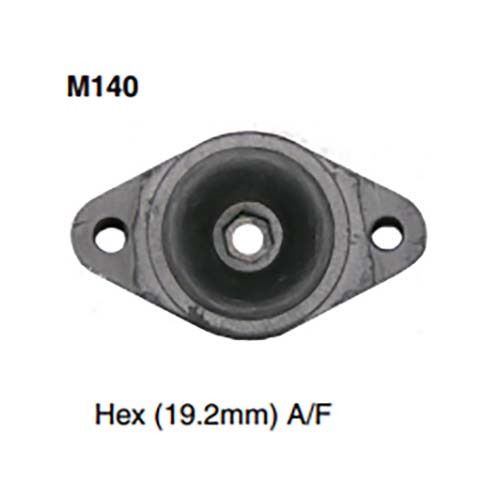

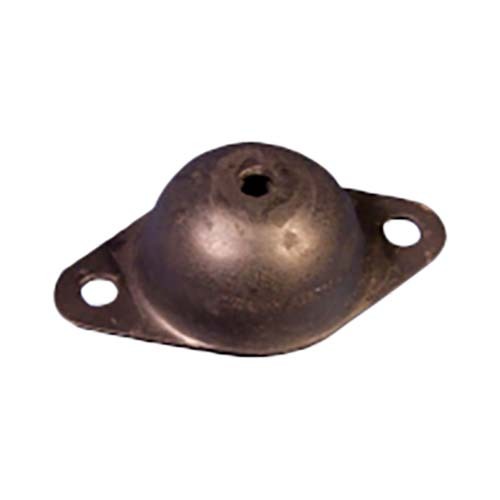

Mackay Heavy Duty Flange Isolator M140

  • These special heavy-duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
  • Loads can be suspended as well as supported.
  • The isolators can be fastened to the floor or other base
  • Shield available (Part No. M189) to protect isolators from mechanical and chemical attacks. Sold separately, contact AIMS for assistance.

Specifications

  • AIMS SKU A0166366
  • Brand Mackay
  • Model Number M14040
  • Barcode Number 9313699022705
  • Thread Size 17/32 inch
  • Weight (kg) 0.4
  • Hole Diameter 13.5 mm
  • Durometer 40

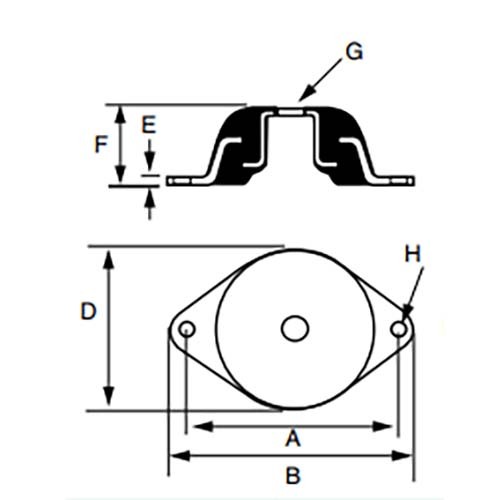

  • Width 83 mm
  • Length in (mm) 141
  • Height Size (mm) 41
  • Centre To Centre 110 mm
  • Plate Thickness (mm) 3
  • Compression Load 200 - 280 kg
  • Compression Deflection (mm) 3.3 - 4.7
  • Shear Load (kg) 100 - 140
  • Shear Deflection (mm) 3.3 - 4.7
SKU: A0166366

Mackay M14040 Heavy Duty Flange Isolator 141 x 83 x 41mm - 200 to 280kg
