Description

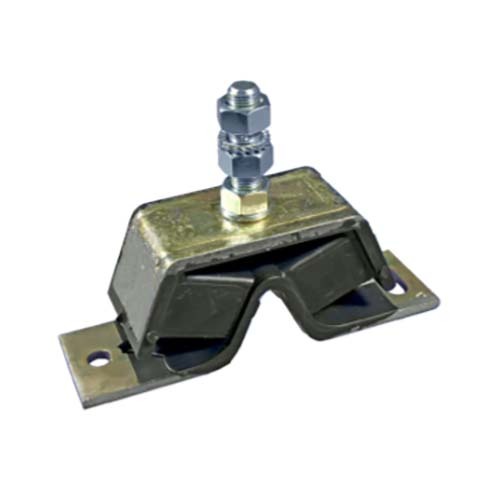

Mackay Double Shear V-Shaped Marine Mount

  • The V-shaped marine mount works the elastomer at shear compression. It is comprised of 2 metal parts which permit its installation by means of a screw at the top and two holes for securing it to the chassis.

Technical Characteristics

  • The V-shaped marine mount has a V-shaped architecture to provide major deflection at low loads. This means that the natural frequency is low and ideal for engines which normally work ticking over.
  • Has three different stiffnesses per axis X,Y,Z to be able to adjust the modes of the suspended unit to obtain an optimal isolation.

Applications

  • Used in applications where the load of the suspended unit is low and the level of vibration isolation is high, such as: small vehicle or machines, small and medium-sized gen sets, marine engines...

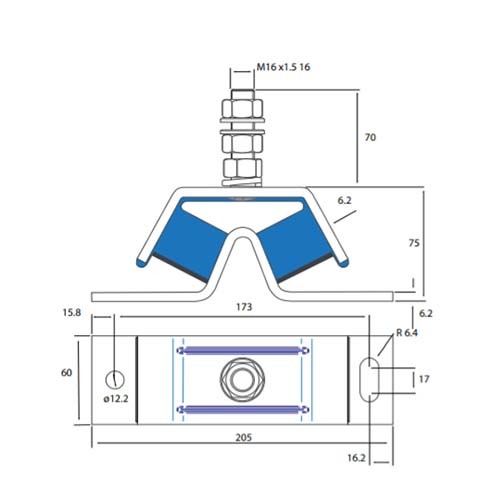

Specifications

  • AIMS SKU A0166352
  • Brand Mackay
  • Model Number M148001
  • Barcode Number 9313699022613
  • Thread Size M16
  • Length in (mm) 205
  • Durometer 40
  • Compression Load 40 kg
  • Width 60 mm
  • Weight (kg) 1.7
  • Height Size (mm) 145
  • Static Deflection (mm) 6
SKU: A0166352

Mackay M148001 Double Shear V-Shaped Marine Mount 205 x 60 x 145mm - 40kg

Mackay Double Shear V-Shaped Marine Mount

$353.93
