Description

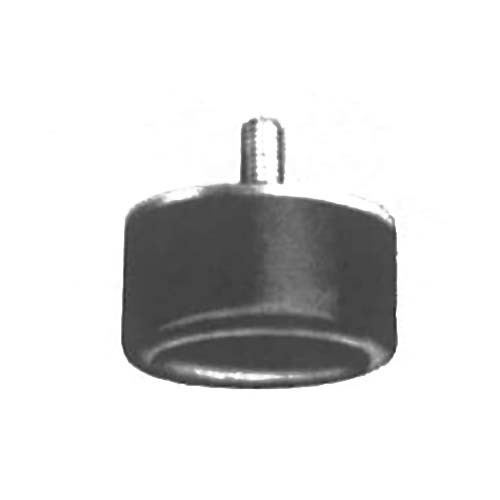

Mackay Bonded Buffer

  • For inexpensive and effective control of machinery vibration, shock and acoustic noise. These buffers are equally adaptable when controlling impact or when used as machine feet; they also may be used as snubbing rubbers when excessive shock loads are encountered in resiliently mounted equipment.

Features

  • Designed specifically to control impact and torque reaction loads.
  • Built to limit movement and stabilize equipment at critical frequencies.
  • A rugged rubber bonded to metal unit ensures simplicity of application and ease of installation.

Specifications

  • AIMS SKU A0170772
  • Brand Mackay
  • Model Number M50725335DS55
  • Barcode Number 9313699028783
  • Static Deflection (mm) 6

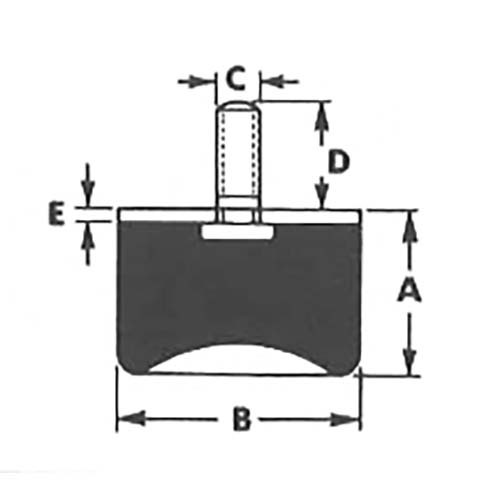

  • Dimension A (mm) 50
  • Dimension B (mm) 100
  • Dimension D (mm) 43
  • Dimension E (mm) 4
  • Dimension C M16
  • Static Load (kg) 300
  • Buffing Deflection (mm) 18
  • Buffing Load 1000 kg
  • Type Bonded Buffer
  • Material Rubber/Metal
SKU: A0170772

Mackay M50725335DS55 Bonded Buffer 100mm Buffing Load 1000kg

Mackay Bonded Buffer
