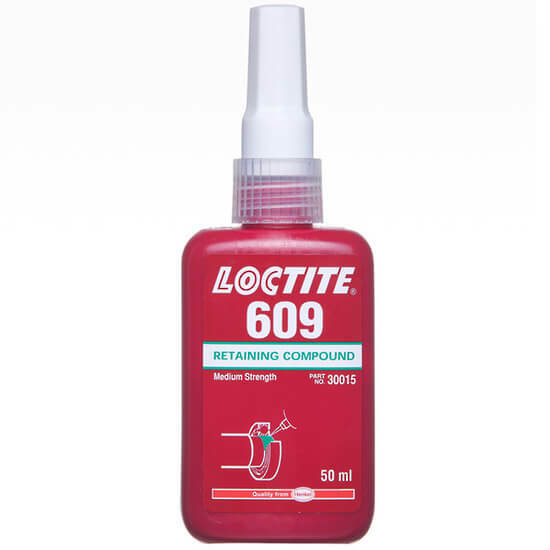

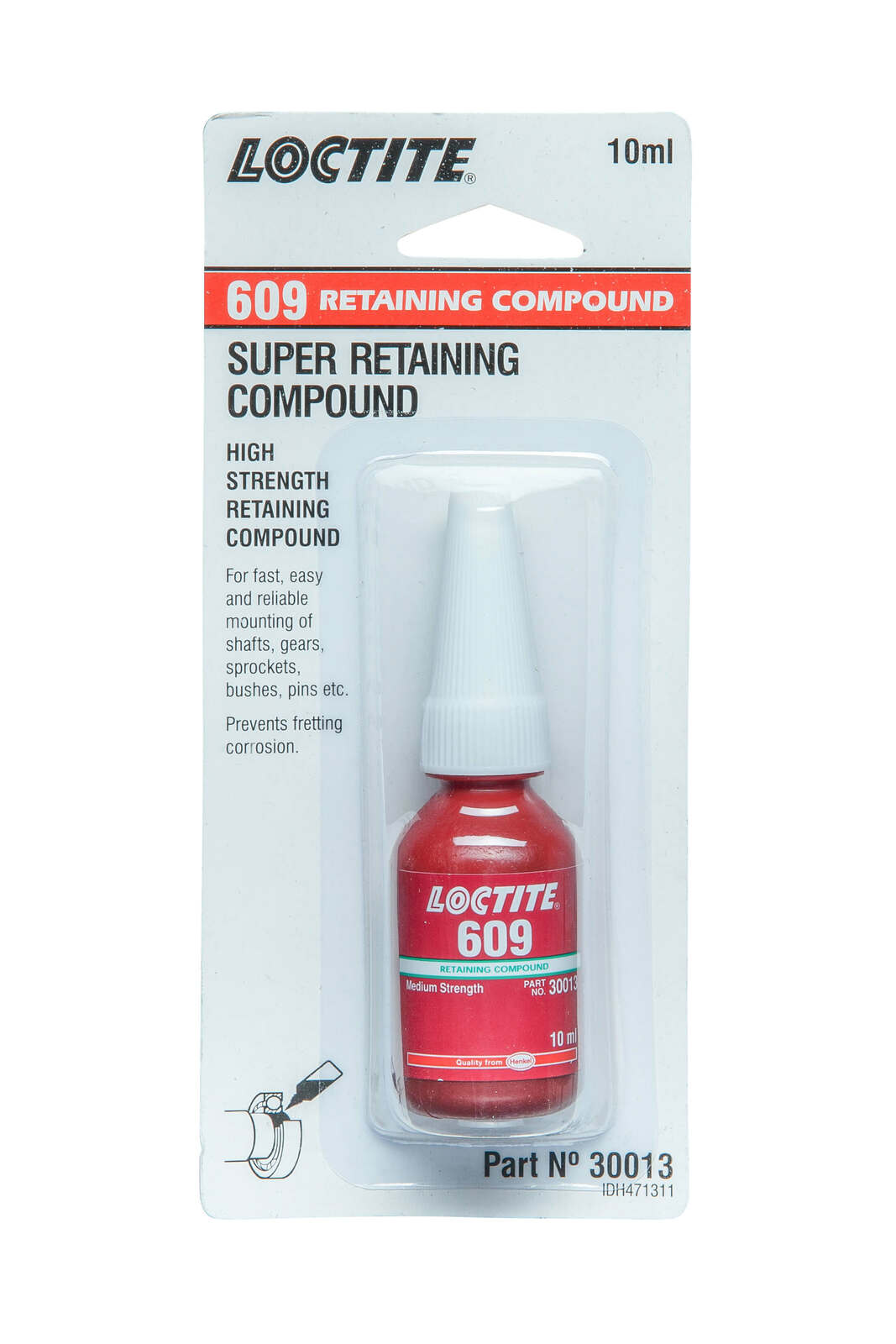

Loctite 609 Cylindrical Bonding Retaining Compound

• High-strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts.
• Loctite 609 is a green, high-strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts.
• The product cures in the absence of air between close-fitting metal surfaces.
• Typical applications include rotor to shafts in fractional and sub fractional horsepower motors. Locks bushings and sleeves in housings on shafts.
• Augments press fits.

Technical Infomation

Agency Approvals / Specifications
ASTM D5363, MIL-R-46082B for existing designs
Application Method
Dispense Gun, Dispense System, Manual
Applications
Retaining, For Close Fitting Cylindrical Parts
Colour
Green
Cure Type
Anaerobic Cure
Fixture Time
10.0 min.
Gap Fill
0.15 mm
Key Characteristics
Shear Strength: High Shear Strength, Viscosity: Low Viscosity, Fluorescent
Operating Temperature
-65.0 - 300.0 °F (-55.0 - 150.0 °C )
Physical Form
Liquid
Shear Strength, Steel
2300.0 psi (15.0 N/mm² )
Specific Gravity, @ 25.0 °C
1.1
Substrates
Metal
Technology
Acrylic
Viscosity
120.0 mPa·s (cP)

Benefits

• Low viscosity.
• Prevents loosening and leakage from shock and vibration.
• Tested to the lot requirements of Military Specification Mil-R-46082B. (This is a regional approval).
