Description

Descriptions

  • Gates Quad-Power® 4 Powerband® offers a stable position in the pulleys and a smooth-running solution for drives where single belts vibrate and rolloffer

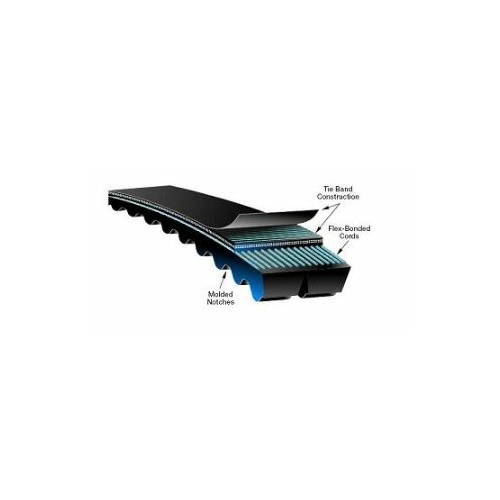

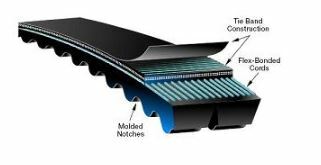

  • It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately
  • Quad-Power® 4 Powerband® is easy to install and offers a high resistance to vibrations
  • The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130°C

Construction

  • Narrow cross-section
  • Moulded notches
  • Notch depth is in proportion to the cross-section to ensure perfect stability
  • Fibre-loaded compound for improved belt stability
  • Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

  • Reduce wrapped belt drive width up to 50%
  • Increase efficiency up to 3% offer wrapped belts
  • Use smaller diameter pulleys than wrapped belts
  • Moulded notches reduce and evenly distribute thermal and bending stresses
  • Reduce drive maintenance
  • Match free system: all sizes meet Gates UNISET & V80® tolerances, can be installed without matching
  • Back idlers can be used

Temperature Range

  • Range: -50°C to +130°C

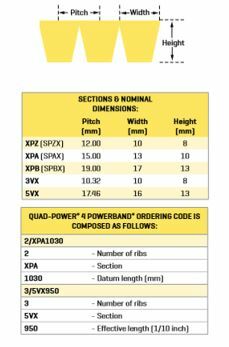

Specifications

  • AIMS SKU A0022527
  • Brand Gates
  • Model Number 9685-40002
  • V Belt Code 2/XPB4000
  • Length (mm) 4000
  • Ribs 2
  • Top Width (mm) 34
  • Pitch (mm) 19
  • Depth (mm) 13
  • Type Powerband Notched Belt- ISO - Narrow Section
  • System of Measurement Metric
  • Material Flex-Bonded Polyester Cord
  • Section XPB
  • Application Heavy-Duty Belt
  • Series Gates Super HC PowerBand Belt
SKU: A0022527

Gates 2/XPB4000 (9685-40002) Quad-Power Notched (Cogged) Narrow Section PowerBand V Belt

Quad Power - Narrow Section - Heavy Duty Belt

$218.45
RRP $819.15
SAVE $600.70 (73%)
