Description

Gates Predator V Belts

  • Gates Predator V Belts are the market's leading V Belts.
  • They are unique and unrivalled in their extreme robustness and high load carrying capability.
  • They are excellent problem solvers that perform well in harsh environments and in extremely demanding applications where standard V Belts have performance issues.
  • The Gates Predato difference is in the construction: having the highest power density of any V Belt and half the stretch of standard Gates belts because of the use of high strength, high modulus aramid tensile cords.

**NOTE: For Multiple Belt Predator Drives, Matched Sets MUST Be Ordered**

**Do not use a mix of SPBP & 5VP belts on the same drive**

About Predator Matching System

  • Predator belts have a matching system which must be used on multiple belt drives.
  • This applies to both Single and Powerband versions of Predator belts.
  • Predator belts are marked with a match/group number between 46 to 54 and each belt on a drive must have the same match/ group number.
  • Each matching number refers to a length tolerance range.
  • The limited stretch characteristic of the Predator belts makes it necessary to match them in this way.
  • If matched belts are not used then it will severely impact performance and life.

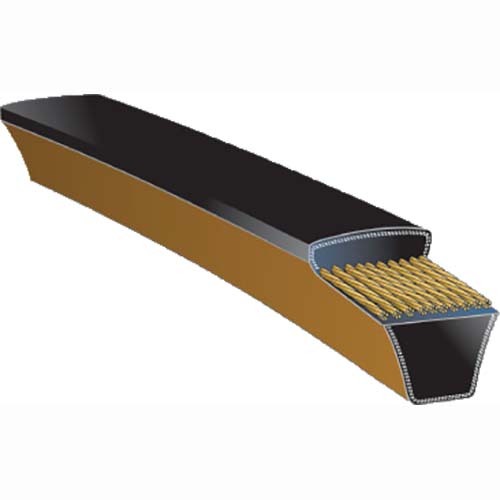

Construction

  • Classical and Narrow cross-sections.
  • Flex bonded aramid tensile cords.
  • Double layer bare back fabric cover.
  • Fibre-loaded compound for improved belt stability.
  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and
  • Increased belt life.
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.

Advantages

  • Maintenance free.
  • Up to 2.2 times more power than standard V Belts.
  • Aramid tensile cords easily handle shock loads.
  • Up to 35% reduced drive cost.
  • Up to 67% reduced drive width.
  • Up to 50% reduced drive weight.
  • Double layer bare back cover protects against slippage and punctures.
  • No increase in shaft load.
  • Replace MTO 8V pulleys with standard SPC pulleys.
  • Reduce overhung loads.
  • No need for constant re-tensioning.
  • Back idlers can be used.

Temperature Range

  • -35°C to +80°C

AIMS Industrial Supplies Is an Authorised Gates V Belt Distributor

Specifications

  • AIMS SKU A0019108
  • Brand Gates
  • Model Number 9188-0080
  • Barcode Number 770075142003
  • Belt Code 5VP800
  • Length (inch) 80

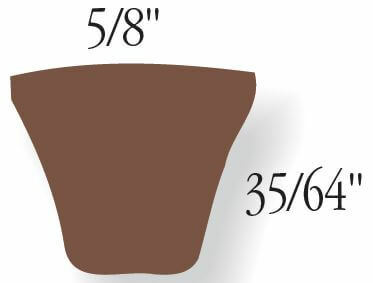

  • Top Width (mm) 17
  • Depth (mm) 13
  • Type Predator V-Belt - Narrow Section
  • System of Measurement Imperial
  • Material Flex-Bonded Aramid
  • Section 5V
  • Application Heavy-Duty Belt
  • Series Gates Predator Single Belt
SKU: A0019108

Gates 5VP800 (9188-0080) Predator Narrow Section V Belt

Heavy Duty, Wrapped, Aramid Cord V Belt

$125.11
RRP $312.77
SAVE $187.66 (60%)
