Description

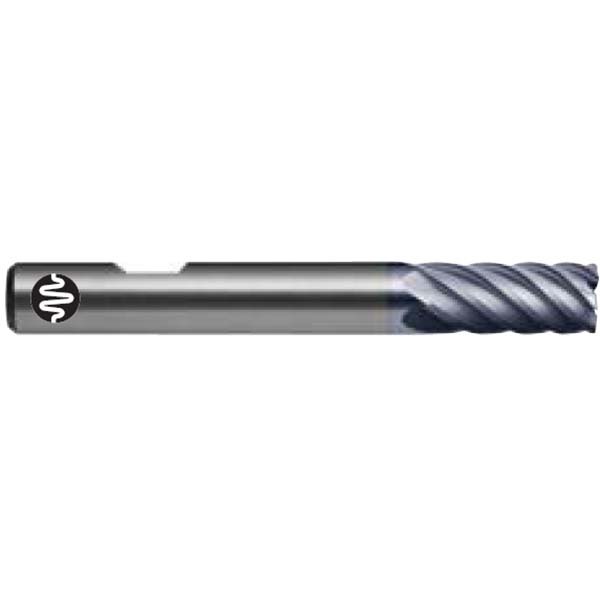

6 Flute Endmill - R50/35 NH - Long Reach - Harmony

  • For super-fine finishing applications

Features

  • VHM-ULTRA grade of carbide for high performance
  • Endmill, 6-8 Flute, R50/35-N, Long Reach, Harmony for high performance
  • 50/35° variable flute helix for chatter-free milling
  • Suitable for hard, short chipping materials up to 48 HRC
  • AlCrN for longer tool life

Specifications

  • Designation: NH
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HB
  • Helix Angle: R50/35
  • Point Tolerance: e8
  • Shank Tolerance: h5

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Steel - Corrosion resistant & cast – Martensitic – 240 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Nodular (GGG) – Pearlitic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for High-temperature alloys - Ni / Co-based – 350 HB
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys
  • Optimal for Hardened Steel – 45 HRC
  • Optimal for Hardened Steel – 55 HRC
  • Optimal for Cast Iron – Chilled – 400 HB

Specifications

  • AIMS SKU A0130219
  • Brand Sutton Tools
  • Model Number E4370605
  • Barcode Number 9311963561059
  • Cutting Tip (mm) 6
  • Overall Length (mm) 62
  • Shank (mm) 6
  • Flute Length (mm) 13
  • Sutton Designation NH
  • Rad 0.5
  • Shank Form HB
  • Product Group B0210
  • Point Tolerance e8
  • Geometry R50/35
  • Shank Tolerance h5
  • Type Endmill Harmony
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 6
  • Group Code E437
SKU: A0130219

Sutton E4370605 6 x 62mm 6 Flute Endmill 0.5° Carbide AlCrN Long HB

6 Flute Endmill - R50/35 NH - Long Reach - Harmony

$144.75
